5320UL - Fire Alarm, #18-2c BC, FPLR

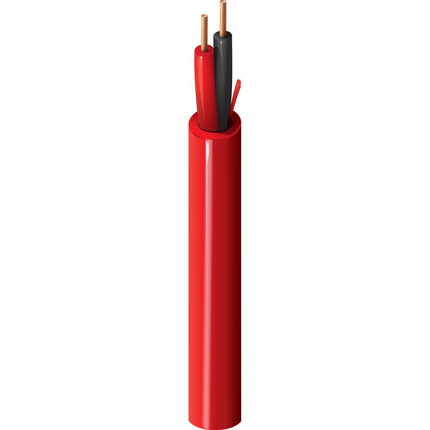

Fire Alarm Cable, Riser-FPLR, 2-18 AWG solid bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)18SolidBC - Bare Copper2
Conductor Count: 2
Insulation
ElementMaterialNominal Wall Thickness
Conductor(s)PP - Polypropylene0.007 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.143 in0.017 inYes

Construction and Dimensions

Cabling
Lay DirectionTwists
Left Hand4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
29 pF/ft29 pF/ft
Inductance
Nominal Inductance
0.16 µH/ft
Current
ElementMax. Recommended Current [A]
10C Temperature RisePer conductor @ 25°C: 5 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 15.9 lbs/1000ft
Max Recommended Pulling Tension: 39.2 lbs
Min Bend Radius/Minor Axis: 1.5 in

Standards

NEC Articles: Article 760
NEC/(UL) Specification: FPLR
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Riser
CSA Flammability: FT4
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6320UL

Part Number

Variants
Item #ColorUPC
5320UL 0101000Black612825160526
5320UL 010U1000Black612825160519
5320UL D151000Blue612825160465
5320UL D15C500Blue612825160458
5320UL 001U1000Brown612825160472
5320UL 0021000Red612825160502
5320UL 002C500Red
5320UL 002U1000Red612825160489
5320UL 002U500Red612825160496
5320UL 009C500White
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.222 Revision Date: 05-11-2020
Date: 2005-04-01
