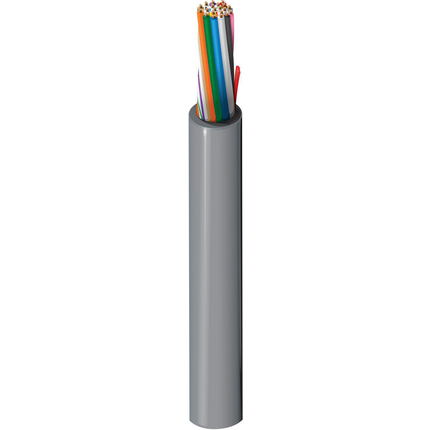

530BUE - Security & Sound, #18-20c, BC, CMR


Security & Sound Cable, Riser-CMR, 20-18 AWG stranded bare copper conductors with PVC insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
187x26BC - Bare Copper20
Conductor Count: 20
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.01 in
Color Chart
Color
Black
Red
White
Green
Brown
Blue
Orange
Yellow
Purple
Gray
Pink
Tan
White/Black
White/Red
White/Green
White/Orange
White/Blue
White/Brown
White/Yellow
White/Violet
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.4 in0.025 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
30 pF/ft
High Frequency (Nominal/Typical)
Nom. Insertion Loss
26.4 dB/100m
Current
Max. Recommended Current [A]
2.5 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 140.8 lbs/1000ft
Max Recommended Pulling Tension: 448 lbs
Min Bend Radius/Minor Axis: 4 in

Standards

NEC Articles: Article 800
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPC
530BUE 0081000Gray612825158943

History

Update and Revision: Revision Number: 0.213 Revision Date: 04-28-2020
Date: 2005-04-01
