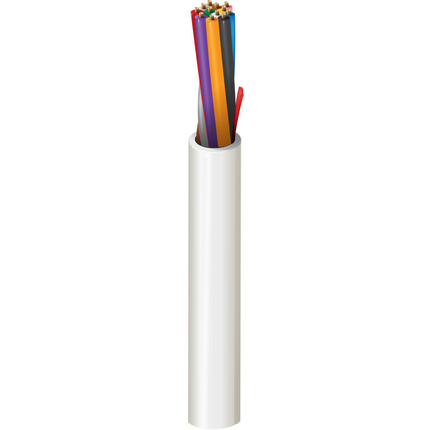

5309UE - Security & Sound, #18-12c, BC, CMR


Security & Sound Cable, Riser-CMR, 12-18 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)187x26BC - Bare Copper12
Conductor Count: 12
Insulation
ElementMaterialNominal Wall Thickness
Conductor(s)PP - Polypropylene0.008 in
Color Chart
Color
Black
Red
White
Green
Brown
Blue
Orange
Yellow
Purple
Gray
Pink
Tan
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.281 in0.018 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
21.5 pF/ft
Current
Max. Recommended Current [A]
3.5 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 84.6 lbs/1000ft
Max Recommended Pulling Tension: 268.8 lbs
Min Bend Radius/Minor Axis: 2.75 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6309UE

Part Number

Variants
Item #ColorUPC
5309UE 0081000Gray612825160076
5309UE 008500Gray612825160083
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.222 Revision Date: 05-11-2020
Date: 2005-04-01
