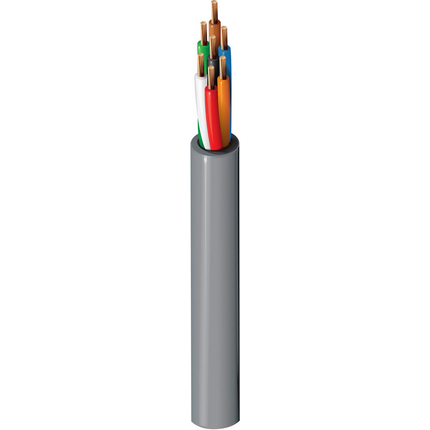

5305UE - Security & Sound, #18-7c, BC, CMR


Security & Sound Cable, Riser-CMR, 7-18 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
187x26BC - Bare Copper7
26
Conductor Count: 7
Conductor Size: 18 AWG
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.008 in
Color Chart
Color
Black
Red
White
Green
Brown
Blue
Orange
Outer Shield Material
MaterialDrainwire AWG
Unshielded26
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.226 in0.018 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
30 pF/ft
High Frequency (Nominal/Typical)
Nom. Insertion Loss
26 dB/100m
Current
Max. Recommended Current [A]
3.5 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 48.9 lbs/1000ft
Max Recommended Pulling Tension: 140 lbs
Min Bend Radius/Minor Axis: 2.25 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPCLengthFootnote
5305UE.K0305Chrome305 m
5305UE 0081000Gray612825159964C
5305UE 008U1000Gray612825159957
Footnote: C - CRATE REEL PUT-UP.
Date: 2005-04-01
