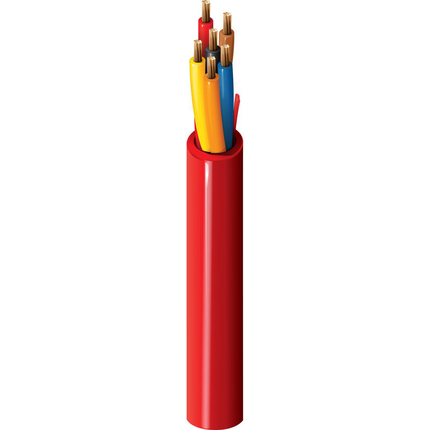

5304UL - Fire Alarm, #18-6c BC, FPLR


Fire Alarm Cable, Riser-FPLR, 6-18 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Fire Protections, Alarm, Signal, Monitor/Detection, Audio Circuits, Control Circuits, Initiating Circuits, Notification Circuits

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
187x26BC - Bare Copper6
Conductor Count: 6
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.008 in
Color Chart
NumberColor
1Black
2Red
3Brown
4Blue
5Orange
6Yellow
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.22 in0.017 inYes

Construction and Dimensions

Cabling
Twists
3.4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
20.25 pF/ft
Current
Max. Recommended Current [A]
5.6 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 34 lbs/1000ft
Max Recommended Pulling Tension: 134.5 lbs
Min Bend Radius/Minor Axis: 2.25 in

Standards

NEC Articles: 760
NEC/(UL) Specification: FPLR

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2009-10-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Riser
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum Number: 6304UL

Part Number

Variants
Item #ColorUPC
5304UL 002U1000Red612825159919

History

Update and Revision: Revision Number: 0.139 Revision Date: 08-22-2019
Date: 2009-10-01
No accessories are available for this product
