5302UP - Audio Cable, 4 Conductor 18 AWG BC, CM

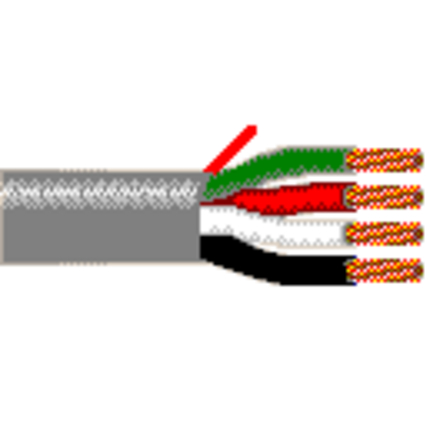

Commercial Audio Cable, 4 Conductor 18 AWG highly flexible stranded (42x34) bare copper conductors with PVC insulation, CM, PVC jacket with ripcord.

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1842x34BC - Bare Copper4
Conductor Count: 4
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.015 in
Color Chart
NumberColor
1Black
2White
3Red
4Green
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.216 in0.015 inYes

Construction and Dimensions

Cabling
Twists
4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.27 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
27 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Current
Max. Recommended Current [A]
9.8 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 34 lbs/1000ft
Max Recommended Pulling Tension: 84 lbs
Min Bend Radius/Minor Axis: 2 in

Standards

NEC/(UL) Specification: CM

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
5302UP 010500BlackReel500 ft612825159766
5302UP 010U500BlackUnReel500 ft612825159674
5302UP D15500BlueReel500 ft612825159667
5302UP D151000BlueReel1,000 ft612825159681
5302UP D15U1000BlueUnReel1,000 ft612825160304
5302UP 0081000GrayReel1,000 ft612825159742
5302UP 005500Green, DarkReel500 ft612825159698
5302UP 005U500Green, DarkUnReel500 ft612825159735
5302UP 0051000Green, DarkReel1,000 ft612825159728
5302UP 005U1000Green, DarkUnReel1,000 ft612825159704
5302UP 009500WhiteReel500 ft612825159773
5302UP 0091000WhiteReel1,000 ft612825159759

History

Update and Revision: Revision Number: 0.262 Revision Date: 04-28-2020
Date: 2005-04-01
