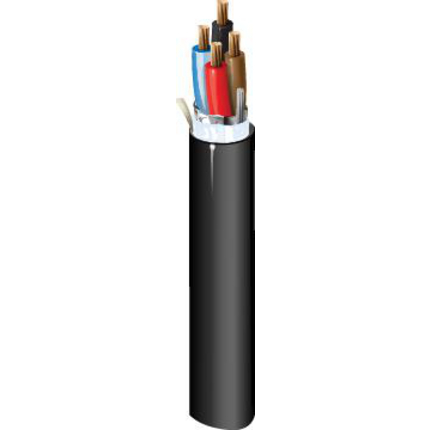

(4)Security & Sound Cable, Rated-CL3, 4-18 AWG PVC-Nylon insulation,100% Shielded, Waterblocking tape, PVC jacket with ripcord
| Suitable Applications: | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Direct Burial |
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 4 | 18 AWG | 7x26 | BC - Bare Copper |
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PVC/Nylon - Polyvinyl Chloride + Nylon | .020 in (0.51 mm) | .020 in (0.51 mm) | Black, Red, Blue, Brown |
| Shield Type | Material | Coverage | Drainwire Type | Notes |
|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC | 100% Waterblocking Tape |
| Waterblocking: | Waterblock Tape |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | .040 in (1.0 mm) | .371 in (9.42 mm) | Yes |
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) |
|---|---|---|
| 6.2 Ohm/1000ft (20 Ohm/km) | 32 pF/ft (100 pF/m) | 58 pF/ft (190 pF/m) |
| UL Voltage Rating |
|---|
| 300 V RMS |
| UL Temperature | Operating |
|---|---|
| 90°C | -20°C To +90°C |
| Stationary Min. | Installation Min. |
|---|---|
| 3.34 in (84.8 mm) | 3.34 in (84.8 mm) |
| Max. Pull Tension: | 112 lbs (50.8 kg) |
| Bulk Cable Weight: | 60 lbs (27 kg) |
| Environmental Suitability: | Outdoor - Direct Burial, Indoor, Outdoor, Sunlight Resistance, Burial |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | UL 1685 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 725, Article 760, CL3, FPL, PLTC |
| CEC / C(UL) Compliance: | CL3 |
| TIA/EIA Compliance: | TIA455-82 Water Penetration Test |
| European Directive Compliance: | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Update and Revision: | Revision Number: 0.5 Revision Date: 07-10-2025 |
