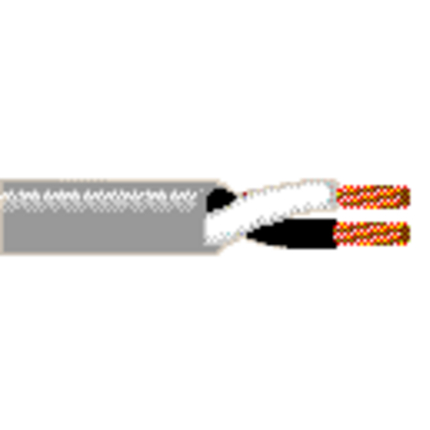

5300UP - Audio Cable, 2 Conductor 18 AWG, BC, Unshielded, CM


Commercial Audio Cable, Rated-CM, 2-18 AWG highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1842x34BC - Bare Copper2
Conductor Count: 2
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.015 in
Color Chart
NumberColor
1Black
2White
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.184 in0.015 inYes

Construction and Dimensions

Cabling
Twists
5.3 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.27 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
27 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Current
Max. Recommended Current [A]
12.2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 18 lbs/1000ft
Max. Pull Tension: 42 lbs
Min Bend Radius/Minor Axis: 1.75 in

Standards

NEC/(UL) Compliance: CM

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
5300UP 0101000BlackReel1,000 ft612825421573
5300UP 010Z1000BlackReelTuff Box1,000 ft612825159322
5300UP D15500BlueReel500 ft612825159315
5300UP D151000BlueReel1,000 ft612825159339
5300UP D15U1000BlueUnReel1,000 ft612825336822
5300UP 0081000GrayReel1,000 ft612825421566
5300UP 008Z1000GrayReelTuff Box1,000 ft612825159391
5300UP 005U500Green, DarkUnReel500 ft612825159377
5300UP 0051000Green, DarkReel1,000 ft612825159346
5300UP 005U1000Green, DarkUnReel1,000 ft612825159353
5300UP 009500WhiteReel500 ft612825159384
5300UP 009U1000WhiteUnReel1,000 ft612825159407
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.260 Revision Date: 06-24-2020
Date: 2005-04-01
Belden-Copper-Catalog-2016.pdf
Audio Video Solutions Guide
No accessories are available for this product
