5300UG - Security & Sound, #18-2c, BC, CM

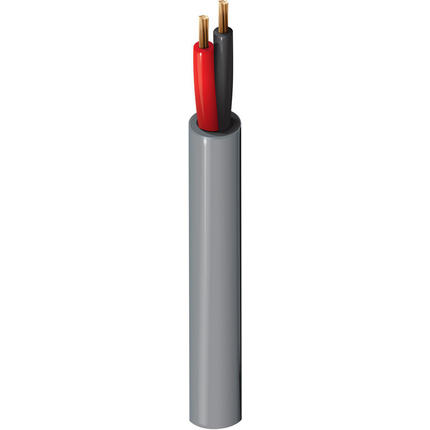

Security & Sound Cable, Rated-CM, 2-18 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket

Product Overview

Suitable Applications: Security System, Alarm, Intercom/PA, Single Line Telephone

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
187x26BC - Bare Copper2
Conductor Count: 2
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.006 in
Color Chart
Color
Black
Red
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.148 in0.015 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
22.5 pF/ft
Inductance
Nominal Inductance
0.14 µH/ft
Current
Max. Recommended Current [A]
5 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 15 lbs/1000ft
Max Recommended Pulling Tension: 45 lbs
Min Bend Radius/Minor Axis: 1.5 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
CSA Flammability: FT1
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPC
5300UG 010C500Black
5300UG 010U1000Black612825159230
5300UG 008C500Gray
5300UG 008U1000Gray612825159186
5300UG 008U500Gray612825159193
5300UG 009C500White612825159209
5300UG 009U1000White612825159216
5300UG 009U500White612825159223

History

Update and Revision: Revision Number: 0.216 Revision Date: 04-28-2020
Date: 2004-01-01
