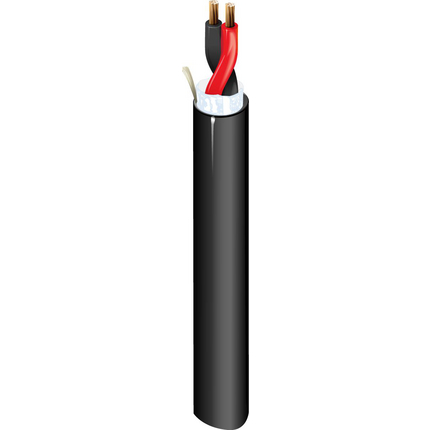

(4)Security & Sound Cable, Rated-CL3, 2-18 AWG PVC-Nylon insulation, Waterblocking tape, PVC jacket with ripcord
| Suitable Applications: | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Direct Burial |
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 18 | 7x26 | BC - Bare Copper |
| Material | Nom. Thickness | Color Code |
|---|---|---|
| PVC/Nylon - Polyvinyl Chloride + Nylon | .020 in (0.51 mm) | Black, Red |
| Type | Description | Coverage [%] |
|---|---|---|
| Waterblocking Tape | Unshielded - With Waterblocking Tape | 100% |
| Table Notes: | Waterblocking tape |
| Waterblocking: | Waterblock Tape |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | .040 in (1.0 mm) | .270 in (6.86 mm) | Yes |
| Overall Cable Diameter (Nominal): | .270 in (6.86 mm) |
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|---|
| 7.06 Ohm/1000ft (23.2 Ohm/km) | 35 pF/ft (110 pF/m) | 5 Amps per Conductor at 25ºC |
| UL Voltage Rating |
|---|
| 300 V |
| UL Temperature | Operating |
|---|---|
| 90°C | -20°C To +90°C |
| Stationary Min. | Installation Min. |
|---|---|
| 2.3 in (58 mm) | 2.3 in (58 mm) |
| Max. Pull Tension: | 54 |
| Bulk Cable Weight: | 39 lbs/1000ft (58 kg/km) |
| Environmental Suitability: | Indoor/Outdoor, Indoor, Outdoor, Burial |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | UL1685, FT4 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 800, Article 760, CL3, FPL, PLTC |
| CEC / C(UL) Compliance: | CL3 |
| TIA/EIA Compliance: | TIA455-82 Water Penetration Test |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Update and Revision: | Revision Number: 0.6 Revision Date: 07-11-2025 |
