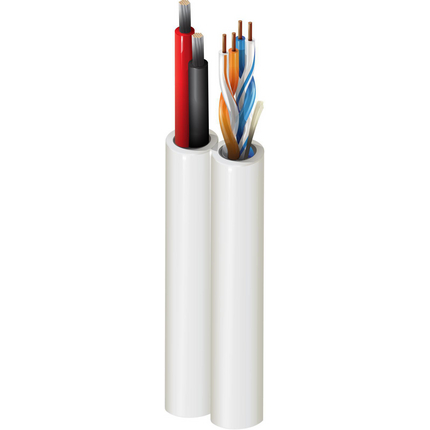

5284US - PTZ, #24-2pr, #16-2c, CMR, Siamese


PTZ (Control + Power) Cable, Riser-CMR, 2-24 AWG solid bare copper pairs with polyolefin insulation, 2-16 AWG stranded bare copper conductors with PVC insulation, Siamese PVC jacket

Product Overview

Suitable Applications: Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom), UTP-CCTV

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of ConductorsNo. of Pairs
Cat 5e Pair24SolidBC - Bare Copper2
Pair11619x29BC - Bare Copper2
Conductor Count: 6
Total Number of Pairs: 3
Insulation
ElementMaterialNominal Diameter
Cat 5e PairPolyolefin0.035 in
Pair1Polyolefin
Color Chart
NumberColor
Cat 5e Pair1Blue and White/Blue
Cat 5e Pair2Orange and White/Orange
Pair1Black & Red
Inner Shield Material
ElementMaterial
Cat 5e PairNo Shield
Pair1No Shield
Outer Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.190 x 0.408 in

Electrical Characteristics

Conductor DCR
ElementMax. Conductor DCRMax. DCR Unbalance
Cat 5e Pair28.5902 Ohm/1000ft5 %
Pair145 Ohm/km
Capacitance
Element
Cat 5e Pair
Pair1
Delay
ElementMax. DelayMax. Delay SkewNominal Velocity of Propagation (VP) [%]
Cat 5e Pair45 ns/ft70 ns/100m70%
High Freq
Frequency [MHz]Max. Insertion Loss (Attenuation)Min. PSNEXT [dB]Min. PSACR [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Max./Min. Fitted Impedance
1 MHz2 dB/100m62 dB60 dB61 dB20 dB100 ± 15%
4 MHz4.1 dB/100m53 dB49 dB49 dB23 dB100 ± 15%
8 MHz5.8 dB/100m48 dB43 dB43 dB24.5 dB100 ± 15%
10 MHz6.5 dB/100m47 dB41 dB41 dB25 dB100 ± 15%
16 MHz8.2 dB/100m44 dB36 dB37 dB25 dB100 ± 15%
20 MHz9.3 dB/100m42 dB34 dB35 dB25 dB100 ± 15%
25 MHz10.4 dB/100m41 dB31 dB33 dB24.3 dB100 ± 15%
31.25 MHz11.7 dB/100m39 dB28 dB31 dB23.6 dB100 ± 15%
62.5 MHz17 dB/100m35 dB19 dB24 dB21.5 dB100 ± 15%
100 MHz22 dB/100m32 dB11 dB21 dB20.1 dB100 ± 15%
Current
Element
Cat 5e Pair
Pair1
Voltage
UL Voltage Rating
300 VRMS
Electrical Characteristics Notes: Maximum DCR Unbalance for Pair @ 20°C: 5%

Temperature Range

Installation Temp Range: 0°C To +75°C
UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C
Separation Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 43 lbs/1000ft
Max Recommended Pulling Tension: 100 lbs

Standards

NEC Articles: Article 800
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG
ISO/IEC Compliance: ISO/IEC 11801, Category 5e for data pair
Third Party Performance Verification: Category 5e

Applicable Environmental and Other Programs

Environmental Space: Indoor - Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6284US

Part Number

Variants
Item #ColorUPC
5284US 0101000Black612825158875
5284US 010500Black612825158882
5284US 0091000White612825158868
Footnote: C - CRATE REEL PUT-UP.
Patent: https://www.belden.com/resources/patents

Product Notes

Notes: Overall jacket sequentially marked.

History

Update and Revision: Revision Number: 0.256 Revision Date: 04-28-2020
Date: 2005-04-01
