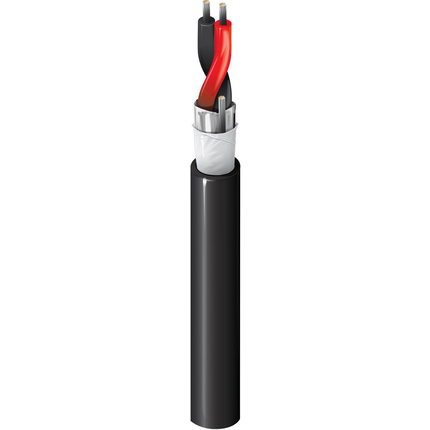

5240U1 - Security & Sound, #16-2c, TC, CMG-FPL-PLTC-ER, Water-Blocked


Security & Sound Cable, Rated-CMG-FPL-PLTC-ER, 1-16 AWG stranded tinned copper pair with PVC insulation, Waterblocking tape, PVC jacket

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Below-Grade Duct

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Pairs
Pair(s)167x24TC - Tinned Copper1
Conductor Count: 2
Total Number of Pairs: 1
Insulation
ElementMaterialNominal Wall Thickness
Pair(s)PVC - Polyvinyl Chloride0.01 in
Color Chart
NumberColor
1Black & Red
Outer Shield Material
Material
No Shield
Outer Shield Table Note: Waterblocking tape
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.249 in0.037 in

Construction and Dimensions

Cabling
Lay DirectionTwists
Left Hand3.4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor Resistance
4.4 Ohm/1000ft4.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
33 pF/ft
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 105°C
Operating Temp Range: -30°C To +105°C

Mechanical Characteristics

Bulk Cable Weight: 31 lbs/1000ft
Max Recommended Pulling Tension: 71 lbs
Min Bend Radius/Minor Axis: 2.5 in

Standards

NEC Articles: 800, 760, 725
NEC/(UL) Specification: CMG, FPL, PLTC
CEC/C(UL) Specification: CMG
CPR Euroclass: Eca
Other Specification: PLTC-ER

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-11-08
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1685 (FT4 Loading)
ISO/IEC Flammability: IEC 60332-1-2
IEEE Flammability: IEEE 1202
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPC
5240U1 0101000Black612825158721
5240U1 0021000Red612825158714
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.215 Revision Date: 05-11-2020
Date: 2006-11-08
