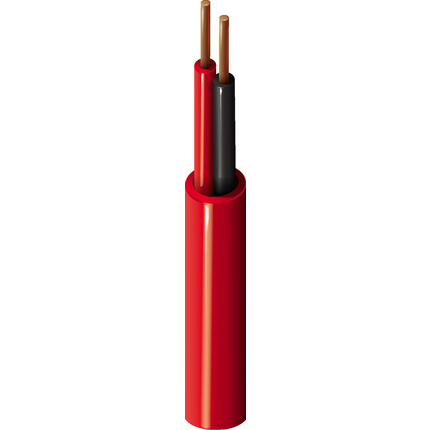

(4)Safe-T-Line 1 Pair x AWG16 (Solid SBC) Fire resistant Multi-conductor, BS 6387 CWZ, EN 50200 PH120, EN60331-2 , unshielded, Ceramifiable Silicone insulation, Low Smoke Zero Halogen Jacket
| Suitable Applications: | Fire Resistant Applications With Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners |
| Element | Size | Stranding | Material |
|---|---|---|---|
| Pair(s) | 16 AWG | Solid | BC - Bare Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | Silicone Rubber | 0.034 in (0.86 mm) | 0.119 in (3.02 mm) | Red, Black |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PO - Polyolefin | 0.045 in (1.1 mm) | 0.329 in (8.36 mm) |
| Table Notes: | Highly Flame Retardant Non-Halogenated Polyolefin |
| Nom. Conductor DCR | Max. Current |
|---|---|
| 4.35 Ohm/1000ft | 19 Amps per Conductor at 30ºC |
| UL Voltage Rating |
|---|
| 300 V |
| UL Temperature | Operating |
|---|---|
| 105°C | -20°C to +105°C |
| Stationary Min. | Installation Min. | Flexing Min. |
|---|---|---|
| 1.316 in (33.43 mm) | 1.316 in (33.43 mm) | 2.632 in (66.85 mm) |
| Max. Pull Tension: | 62.4 lbs (28.3 kg) |
| Bulk Cable Weight: | 52 lbs/1000ft |
| Environmental Suitability: | Indoor |
| Flammability / Reaction to Fire: | UL 1666 riser, 1202, IEC 60331-21, BS EN 50200 PH120 |
| NEC / UL Compliance: | Article 760, FPLR, ITC, PLTC |
| European Directive Compliance: | EU Directive 2011/65/EU (RoHS 2) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s): | BS 6387 CWZ, EN50200 PH120 |
| Plenum Number: | No |
| Update and Revision: | Revision Number: 0.39 Revision Date: 07-10-2025 |
