5205UE - Security & Sound, #16-7c, BC, CMR

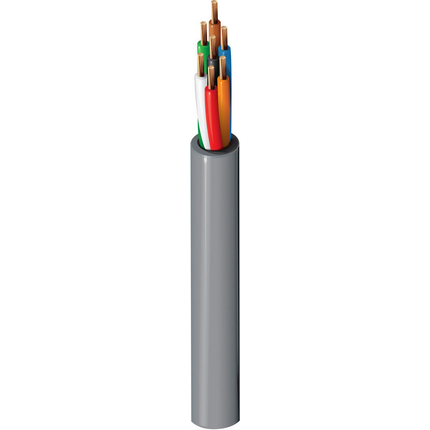

Security & Sound Cable, Riser-CMR, 7-16 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1619x29BC - Bare Copper7
Conductor Count: 7
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.008 in
Color Chart
Color
Brown
Red
Orange
Green
Blue
White
Black
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.249 in0.018 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
4.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
24 pF/ft
Current
Max. Recommended Current [A]
4.4 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 73 lbs/1000ft
Max. Pull Tension: 212.8 lbs
Min Bend Radius/Minor Axis: 2.5 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
UL voltage rating: 300 V RMS

Part Number

Non-Plenum Number: 6205UE
Variants
Item #ColorUPC
5205UE 0081000Gray612825158219
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.219 Revision Date: 04-28-2020
Date: 2005-04-01
No accessories are available for this product
