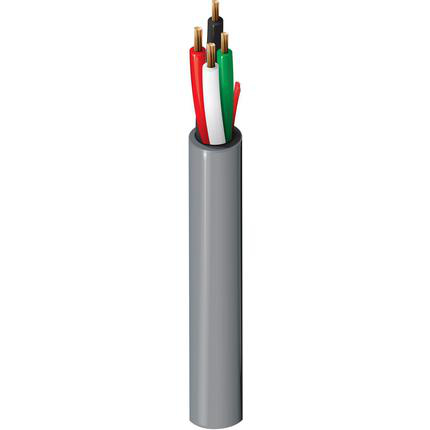

5202UP - Audio Cable, 4 Conductor 16 AWG, BC, Unshielded, CM


Commercial Audio Cable, Rated-CM, 4-16 AWG highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1665x34BC - Bare Copper4
Conductor Count: 4
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.015 in
Color Chart
Color
Black
White
Red
Green
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.244 in0.015 inYes

Construction and Dimensions

Cabling
Twists
4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
4.05 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
30 pF/ft
Inductance
Nominal Inductance
0.16 µH/ft
Current
Max. Recommended Current [A]
15.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 48 lbs/1000ft
Max. Pull Tension: 130 lbs
Min Bend Radius/Minor Axis: 2.5 in

Standards

NEC/(UL) Compliance: CM

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
5202UP 0101000BlackReel1,000 ft612825158158
5202UP 010U1000BlackUnReel1,000 ft612825426936
5202UP 010Z1000BlackReelTuff Box1,000 ft612825158042
5202UP 010Z1000BlackReelTuff Box1,000 ft612825158042
5202UP D15500BlueReel500 ft612825158028
5202UP D15U500BlueUnReel500 ft612825350286
5202UP D151000BlueReel1,000 ft612825158059
5202UP D15U1000BlueUnReel1,000 ft612825158035
5202UP 008U500GrayUnReel500 ft612825158141
5202UP 0081000GrayReel1,000 ft612825158097
5202UP 008U1000GrayUnReel1,000 ft612825158103
5202UP 005500Green, DarkReel500 ft612825158066
5202UP 005U500Green, DarkUnReel500 ft612825158110
5202UP 0051000Green, DarkReel1,000 ft612825158080
5202UP 009U500WhiteUnReel500 ft612825158165
5202UP 0091000WhiteReel1,000 ft612825158127
5202UP 009U1000WhiteUnReel1,000 ft612825158134
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.268 Revision Date: 06-24-2020
Date: 2005-04-01
