5140U1 - Security & Sound, #14-2c, TC, CMG-FPL-PLTC-ER, Water-Blocked

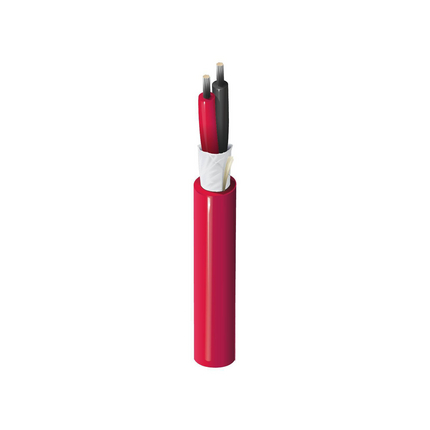

Security & Sound Cable, Rated-CMG-FPL-PLTC-ER, 1-14 AWG stranded tinned copper pair with PVC insulation, Waterblocking tape, PVC jacket

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Fire Alarm (Red Jkt), Power-Limited Controls, Wet Location, Below-Grade Duct

Physical Characteristics (Overall)

ElementAWGStrandingMaterialNo. of Pairs
Pair(s)1419x27TC - Tinned Copper1
Conductor Count: 2
ElementMaterialNominal Wall Thickness
Pair(s)PVC - Polyvinyl Chloride0.022 in
Color Chart
1Black & Red
Outer Shield Material
No Shield
Outer Shield Table Note: Waterblocking tape
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.356 in0.042 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor Resistance
3.05 Ohm/1000ft3.05 Ohm/1000ft
Nom. Capacitance Conductor to Conductor
31 pF/ft
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 105°C
Operating Temp Range: -30°C To +105°C

Mechanical Characteristics

Bulk Cable Weight: 58 lbs/1000ft
Max Recommended Pulling Tension: 95 lbs
Min Bend Radius/Minor Axis: 3.25 in


NEC Articles: 800, 760, 725
NEC/(UL) Specification: CMG, FPL, PLTC-ER
CEC/C(UL) Specification: CMG
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-11-08
MII Order #39 (China RoHS): Yes


Suitability - Burial: Yes
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 FT4 loading
CSA Flammability: FT4
ISO/IEC Flammability: IEC 60332-1-2
IEEE Flammability: 1202 Vertical Tray Flame Test
UL voltage rating: 300 V RMS


Plenum (Y/N): No

Part Number

Item #ColorUPC
5140U1 0101000Black612825157205
5140U1 0021000Red612825157182


Update and Revision: Revision Number: 0.210 Revision Date: 05-11-2020
Date: 2006-11-08
