5120UL - Fire Alarm, #14-2c BC, FPLR

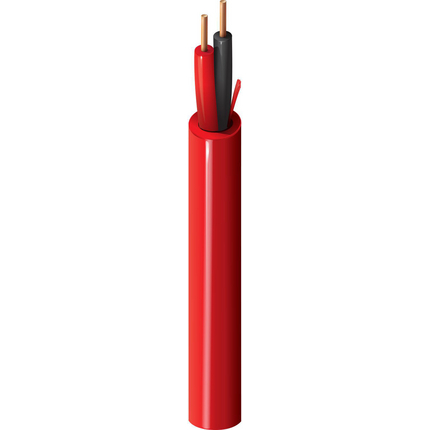

Fire Alarm Cable, Riser-FPLR, 2-14 AWG solid bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)14SolidBC - Bare Copper2
Conductor Count: 2
Insulation
ElementMaterialNominal Wall Thickness
Conductor(s)PP - Polypropylene0.01 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.205 in0.017 inYes

Construction and Dimensions

Cabling
Lay DirectionTwists
Left Hand3.4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
2.43 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
23 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Current
ElementMax. Recommended Current [A]
10C Temperature RisePer conductor @ 25°C: 8 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 32 lbs/1000ft
Max Recommended Pulling Tension: 99.4 lbs
Min Bend Radius/Minor Axis: 2 in

Standards

NEC Articles: 760
NEC/(UL) Specification: FPLR
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Riser
CSA Flammability: FT4
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): N
Plenum Number: 6120UL

Part Number

Variants
Item #ColorUPC
5120UL 0101000Black612825156994
5120UL D151000Blue612825156963
5120UL 0061000Blue612825350767
5120UL 0061000Blue612825350767
5120UL 0051000Green612825350750
5120UL 0051000Green612825350750
5120UL 0031000Orange612825350743
5120UL 0031000Orange612825350743
5120UL 0021000Red612825336488
5120UL 002500Red612825156970
5120UL 0071000Violet612825350774
5120UL 0071000Violet612825350774
5120UL 0091000White612825350781
5120UL 0091000White612825350781
5120UL 0041000Yellow612825156987
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.243 Revision Date: 05-11-2020
Date: 2005-04-01
Belden-Copper-Catalog-2016.pdf
No accessories are available for this product
