5120FL - Fire Alarm, #14-2c BC, Shielded, FPLR

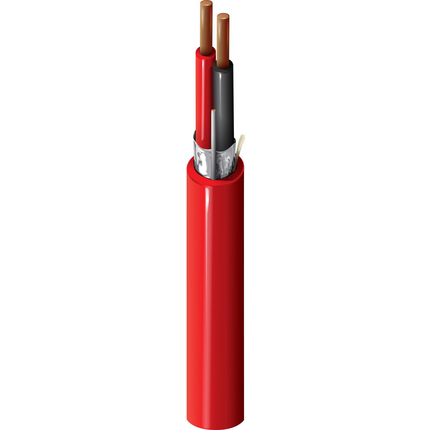

Fire Alarm Cable, Riser-FPLR, 2-14 AWG solid bare copper conductors with polyolefin insulation, overall Beldfoil® shield, PVC jacket with ripcord

Product Overview

Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)14SolidBC - Bare Copper2
Conductor Count: 2
Insulation
ElementMaterialNominal Wall Thickness
Conductor(s)PP - Polypropylene0.01 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
MaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
Alum / PolyBeldfoil®100 %TC - Tinned Copper22Solid
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.209 in0.017 inYes

Construction and Dimensions

Cabling
Twists
4.8 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
2.43 Ohm/1000ft11.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
60 pF/ft108 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 8 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 35 lbs/1000ft
Max Recommended Pulling Tension: 113 lbs
Min Bend Radius/Minor Axis: 2 in

Standards

NEC Articles: 760
NEC/(UL) Specification: FPLR
CPR Euroclass: Eca
Other Specification: California State Fire Marshall

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Riser
CSA Flammability: FT4
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6120FL

Part Number

Variants
Item #ColorUPC
5120FL D151000Blue612825156918
5120FL 0021000Red612825156925
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.233 Revision Date: 05-11-2020
Date: 2005-04-01
