5102UP - Audio Cable, 4 Conductor 14 AWG, BC, Unshielded, CM

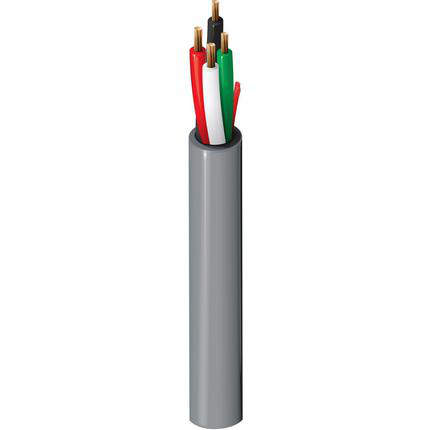

Commercial Audio Cable, Rated-CL3, 4-14 AWG highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1442x30BC - Bare Copper4
Conductor Count: 4
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.02 in
Color Chart
Color
Black
White
Red
Green
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.313 in0.018 inYes

Construction and Dimensions

Cabling
Twists
2.8 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
2.42 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
29 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Current
Max. Recommended Current [A]
17.6 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 76 lbs/1000ft
Max. Pull Tension: 218.4 lbs
Min Bend Radius/Minor Axis: 3 in

Standards

NEC/(UL) Compliance: CL3

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
5102UP 010500BlackReel500 ft612825156727
5102UP D15500BlueReel500 ft612825156161
5102UP D151000BlueReel1,000 ft612825156734
5102UP 008500GrayReel500 ft612825156765
5102UP 0081000GrayReel1,000 ft612825156758
5102UP 005500Green, DarkReel500 ft612825156741
5102UP 009500WhiteReel500 ft612825156772
5102UP 0101000WhiteReel1,000 ft612825156789
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.258 Revision Date: 06-24-2020
Date: 2005-04-01
