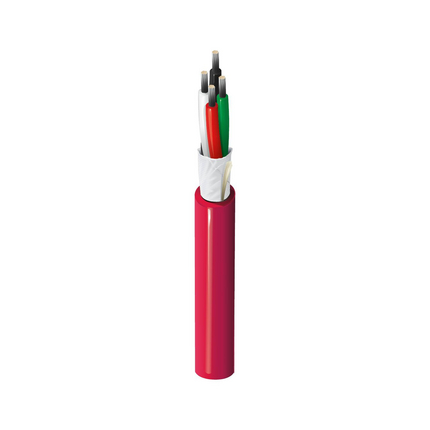

5102U1 - Security & Sound, #14-4c, TC, CMG-FPL-PLTC-ER, Water-Blocked


Security & Sound Cable, Rated-CMG-FPL-PLTC-ER, 4-14 AWG stranded tinned copper conductors with PVC insulation, Waterblocking tape, PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Fire Alarm (Red Jkt), Power-Limited Controls, Wet Location, Below-Grade Duct

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1419x27TC - Tinned Copper4
Conductor Count: 4
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.022 in
Color Chart
NumberColor
1Black
2White
3Red
4Green
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessSeparator Material
PVC - Polyvinyl Chloride0.427 in0.053 inWaterblocking Tape

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor Resistance
2.9 Ohm/1000ft2.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
31 pF/ft
Current
Max. Recommended Current [A]
13 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 105°C
Operating Temp Range: -30°C To +105°C

Mechanical Characteristics

Bulk Cable Weight: 108 lbs/1000ft
Max. Pull Tension: 190 lbs
Min Bend Radius/Minor Axis: 4.25 in

Standards

NEC Articles: Article 725, Article 760, Article 800
NEC/(UL) Compliance: CMG, FPL, PLTC-ER
CEC/C(UL) Compliance: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-11-06
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Burial: Yes
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1685 FT4 loading
IEEE Flammability: 1202 Vertical Tray Flame Test
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPC
5102U1 0101000Black612825156819
5102U1 0021000Red612825156796

History

Update and Revision: Revision Number: 0.209 Revision Date: 06-24-2020
Date: 2006-11-06
