5101FE - Security & Sound, 3 Conductor 14 AWG BC, CL3R

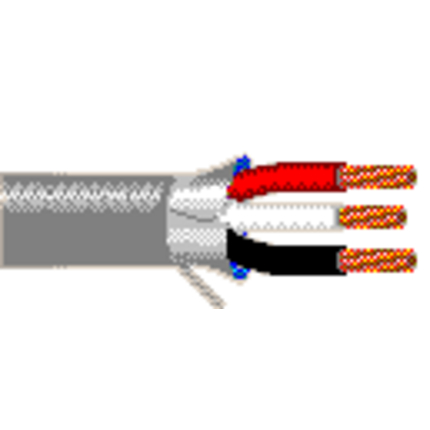

Security & Commercial Audio Cable, 3 Conductor 14 AWG stranded (19x27) bare copper conductors with polyolefin insulation, Beldfoil® shield, Riser, PVC jacket with ripcord.

Product Overview

Environmental Space: Indoor - Riser
Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1419x27BC - Bare Copper3
Conductor Count: 3
Conductor Size: 14 AWG
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.011 in
Color Chart
NumberColorNumberColor
1Black3Red
2White
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper22Solid
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.249 in0.017 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
2.54 Ohm/1000ft11.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
83 pF/ft149.4 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Current
ElementMax. Recommended Current [A]
10C Temperature RisePer conductor @ 25°C ambient: 8 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 54 lbs/1000ft
Max Recommended Pulling Tension: 172.9 lbs
Min Bend Radius/Minor Axis: 2.5 in

Standards

NEC Articles: 725
NEC/(UL) Specification: CL3R
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Vertical Shaft
CSA Flammability: FT4
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6101FH

Part Number

Variants
Item #ColorUPCLengthFootnote
5101FE.00305Gray305 m
5101FE 0081000Gray6128251566281,000 ftC
5101FE.K0305Gray305 m
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.277 Revision Date: 07-11-2019
Date: 2005-04-01
