5100U1 - Security & Sound, 2 Conductor 14 AWG TC, Waterblocked, CL3

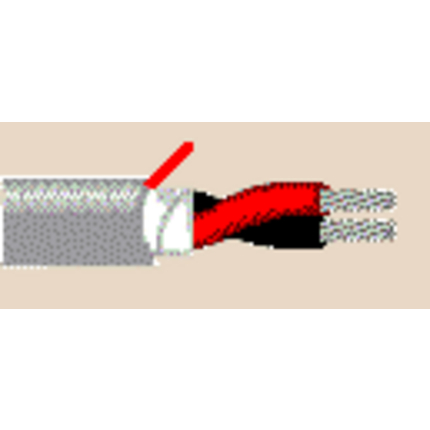

Security & Commercial Audio Cable, 2 Conductor 14 AWG stranded (19x27) tinned copper conductors with PVC insulation, Waterblocking tape, CL3, PVC jacket with ripcord.

Product Overview

Environmental Space: Indoor (Not Riser or Plenum)
Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1419x27TC - Tinned Copper2
Conductor Count: 2
Conductor Size: 14 AWG
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.014 in
Color Chart
NumberColor
1Black
2White
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.29 in0.025 inYes

Construction and Dimensions

Cabling
Twists
4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
2.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
30 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Current
Max. Recommended Current [A]
8 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 105°C
Operating Temp Range: -20°C To +105°C

Mechanical Characteristics

Bulk Cable Weight: 44 lbs/1000ft
Max Recommended Pulling Tension: 95 lbs
Min Bend Radius/Minor Axis: 2.875 in

Standards

NEC Articles: 725
NEC/(UL) Specification: CL3

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2011-11-11
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes
Suitability - Outdoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPCLengthFootnote
5100U1 0101000Black6128251563071,000 ftC
5100U1 0081000Gray6128251565811,000 ftC
Footnote: C - CRATE REEL PUT-UP.
Date: 2011-11-11
