5100FH - Security & Sound, 2 Conductor 14 AWG, TC, CMR

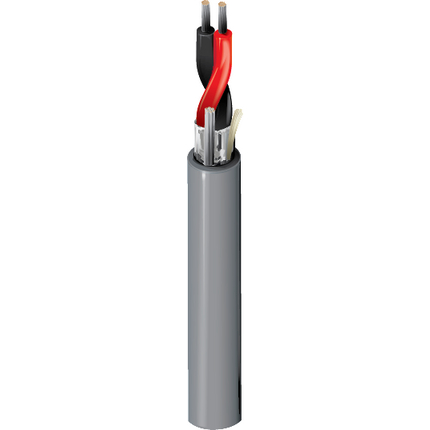

Security & Commercial Audio Cable, Riser-CL3R-FPLR, 2-14 AWG stranded tinned copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems, Fire Alarm Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1419x27TC - Tinned Copper2
Conductor Count: 2
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.011 in
Color Chart
NumberColor
1Black
2White
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper22
Outer Jacket Material
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.017 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
2.54 Ohm/1000ft10 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
54 pF/ft97.25 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Current
Max. Recommended Current [A]
8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 45.8 lbs/1000ft
Max. Pull Tension: 125.4 lbs
Min Bend Radius/Minor Axis: 2.25 in

Standards

NEC Articles: Article 725, Article 760
NEC/(UL) Compliance: CL3R, FPLR

Applicable Environmental and Other Programs

Environmental Space: Indoor - Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Vertical Shaft
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6100FH

Part Number

Variants
Item #ColorPutup TypeLengthUPC
5100FH 0081000GrayReel1,000 ft612825156253
5100FH 008U1000GrayUnReel1,000 ft612825156574

History

Update and Revision: Revision Number: 0.87 Revision Date: 09-30-2020
Date: 2005-04-01
No accessories are available for this product
