5100FE - Security & Sound, 2 Conductor 14 AWG, BC, CMR

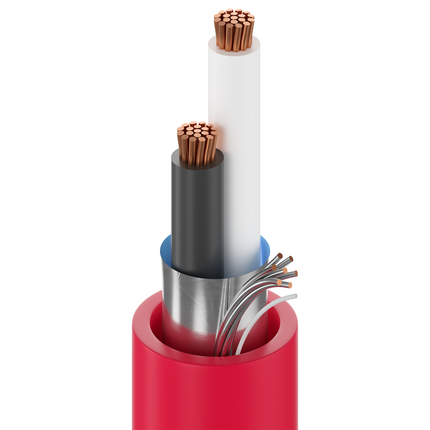

Security & Commercial Audio Cable, Riser-CL3R-FPLR, 2-14 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems, Fire Alarm Systems

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)1419x27BC - Bare Copper2
Conductor Count: 2
Insulation
ElementMaterialNominal Wall Thickness
Conductor(s)PP - Polypropylene0.011 in
Color Chart
NumberColor
1Black
2White
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %TC - Tinned Copper22Solid
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.234 in0.017 inYes

Construction and Dimensions

Cabling
Lay DirectionTwists
Left Hand4.4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
2.54 Ohm/1000ft10 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
54 pF/ft97.25 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Current
ElementMax. Recommended Current [A]
10C Temperature RisePer conductor @ 25°C ambient: 8 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 45.8 lbs/1000ft
Max Recommended Pulling Tension: 125.4 lbs
Min Bend Radius/Minor Axis: 2.25 in

Standards

NEC Articles: Article 725, Article 760
NEC/(UL) Specification: CL3R, FPLR
CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Vertical Shaft
CSA Flammability: FT4
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6100FH

Part Number

Variants
Item #ColorPutup TypeLengthUPC/EAN
5100FE.00152ChromeReel152 m8719605007704
5100FE.00305ChromeReel305 m8719605007728
5100FE.001000ChromeReel1,000 m8719605007698
5100FE 008500GrayReel500 ft612825156222
5100FE 0081000GrayReel1,000 ft612825156246
5100FE 008U1000GrayUnReel1,000 ft612825423591
5100FE 008Z1000GrayReelTuff Box1,000 ft612825156260
5100FE.003000GrayReel3,000 m8719605007711
5100FE 0021000RedReel1,000 ft612825423584
5100FE 002Z1000RedReelTuff Box1,000 ft612825156239
Footnote: C - CRATE REEL PUT-UP.
