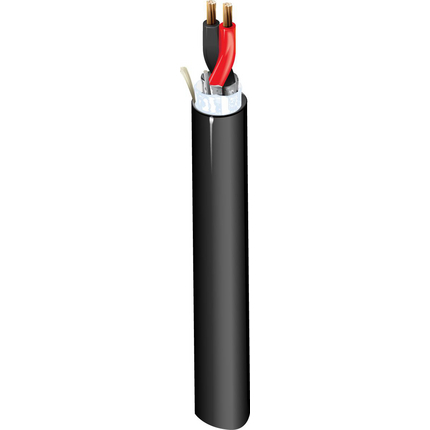

(4)Security & Sound Cable, Rated-CL3, 2-14 AWG PVC-Nylon insulation, 100% Al. Foil Shield, Waterblocking tape, PVC jacket with ripcord
| Suitable Applications: | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Direct Burial |
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 14 AWG | 19x27 | BC - Bare Copper |
| Element | Material | Nom. Thickness | Color Code |
|---|---|---|---|
| Conductor(s) | PVC/Nylon - Polyvinyl Chloride + Nylon | .020 in (0.51 mm) | Black, Red |
| Shield Type | Material | Coverage | Drainwire Type | Notes |
|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC | Waterblocking Tape |
| Waterblocking: | Waterblock Tape |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | .040 in (1.0 mm) | .350 in (8.89 mm) | Yes |
| Table Notes: | Waterblocking Tape |
| Overall Cable Diameter (Nominal): | .350 in (8.89 mm) |
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) |
|---|---|---|
| 2.7 Ohm/1000ft (8.9 Ohm/km) | 46 pF/ft (150 pF/m) | 83 pF/ft (270 pF/m) |
| UL Voltage Rating |
|---|
| 300 V |
| UL Temperature | Operating |
|---|---|
| 90°C | -20°C To +90°C |
| Installation Min. |
|---|
| 3.15 in (80.0 mm) |
| Max. Pull Tension: | 99 lbs (45 kg) |
| Bulk Cable Weight: | 67 lbs/1000ft (100 kg/km) |
| Environmental Suitability: | Indoor/Outdoor, Indoor, Outdoor, UV Resistance, Burial |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | UL 1685, FT4 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 725, Article 760, CL3, FPL, PLTC |
| TIA/EIA Compliance: | TIA455-82 Water Penetration Test |
| European Directive Compliance: | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Update and Revision: | Revision Number: 0.4 Revision Date: 07-11-2025 |
