5020FL - Fire Alarm, #12-2c BC, Shielded, FPLR

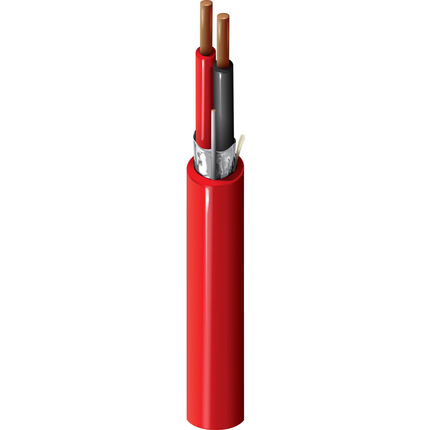

Fire Alarm Cable, Riser-FPLR, 2-12 AWG solid bare copper conductors with polyolefin insulation, overall Beldfoil® shield, PVC jacket with ripcord

Product Overview

Suitable Applications: Fire Protection, Alarm, Signal, Monitor/Detection, Audio Circuits, Control Circuits, Initiating Circuits, Notification Circuits

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
12SolidBC - Bare Copper2
Conductor Count: 2
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.01 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
MaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
Aluminum/PolyesterBeldfoil®100 %TC - Tinned Copper207x28 mm
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.243 in0.017 inYes

Construction and Dimensions

Cabling
Twists
4.4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
1.53 Ohm/1000ft7.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
71 pF/ft128 pF/ft
Inductance
Nominal Inductance
0.14 µH/ft
Current
Max. Recommended Current [A]
12 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 56.8 lbs/1000ft
Max Recommended Pulling Tension: 172 lbs
Min Bend Radius/Minor Axis: 2.5 in

Standards

NEC Articles: 760
NEC/(UL) Specification: FPLR
Other Specification: California State Fire Marshall

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Riser
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6020FL

Part Number

Variants
Item #ColorUPCFootnote
5020FL 0021000Red612825155881C
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.221 Revision Date: 08-22-2019
Date: 2005-04-01
