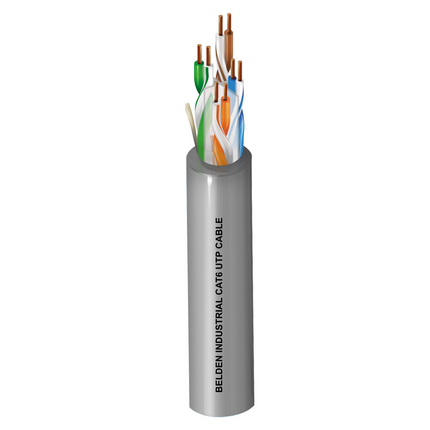

(109)24 AWG solid bare copper conductors, non-plenum, Polyolefin insulation, twisted pairs, central spline, rip cord, see color code chart (below), PVC jacket.
| Suitable Applications: | Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6 |
| Size | Stranding | Material | Number of Pairs | Number of Element |
|---|---|---|---|---|
| 24 | Solid | BC - Bare Copper | 4 | 8 |
| Material | Color Code |
|---|---|
| PO - Polyolefin | Blue & White with Blue Markings, Orange & White with Orange Markings, Green & White with Green Markings, Brown & White with Brown Markings |
| Description |
|---|
| Overall Cabling Fillers |
| Material | Nom. Diameter | Ripcord |
|---|---|---|
| PVC - Polyvinyl Chloride | 6.3 mm (0.25 in) | Yes |
| Max. Conductor DCR | Max. Mutual Capacitance | Max. Capacitance Unbalance | Nom. Characteristic Impedance |
|---|---|---|---|
| 93.8 Ohm/km (28.6 Ohm/1000ft) | 56 pF/m (17 pF/ft) | 330 pF/100m | 100 Ohm |
| Max. Delay | Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|---|
| 538 ns/100m | 45 ns/100m | 70% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|---|---|
| 1 | 2 dB/100m | 74.3 | 72.3 | 67.8 | 64.8 | 20 |
| 4 | 3.8 dB/100m | 65.3 | 63.3 | 55.8 | 52.8 | 23 |
| 8 | 5.3 dB/100m | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
| 10 | 6 dB/100m | 59.3 | 57.3 | 47.8 | 44.8 | 25 |
| 16 | 7.6 dB/100m | 56.2 | 54.2 | 43.7 | 40.7 | 25 |
| 20 | 8.5 dB/100m | 54.8 | 52.8 | 41.8 | 38.8 | 25 |
| 25 | 9.5 dB/100m | 53.3 | 51.3 | 39.8 | 36.8 | 24.3 |
| 31.25 | 10.7 dB/100m | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 |
| 62.5 | 15.4 dB/100m | 47.4 | 45.4 | 31.9 | 28.9 | 21.5 |
| 100 | 19.8 dB/100m | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 |
| 155 | 25.2 dB/100m | 41.4 | 39.4 | 24 | 21 | 18.8 |
| 200 | 29 dB/100m | 39.8 | 37.8 | 21.8 | 18.8 | 18 |
| 250 | 32.8 dB/100m | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 |
| UL Voltage Rating |
|---|
| 72 V DC |
| Operating |
|---|
| -20°C To +75°C |
| Installation Min. |
|---|
| 50.4 mm (1.98 in) |
| Max. Pull Tension: | 110 N (25 lbf) |
| Bulk Cable Weight: | 47 kg/km (32 lbs/1000ft) |
| Environmental Suitability: | Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
| Flammability / Reaction to Fire: | UL1685 UL Loading, IEC 60332-3-25 |
| NEC / UL Compliance: | CM |
| CEC / C(UL) Compliance: | CM |
| TIA/EIA Compliance: | TIA-568.2-D Category 6 |
| ISO/IEC Compliance: | ISO/IEC 11801 Cat 6 |
| Notes: | Jacket sequentially marked |
| Update and Revision: | Revision Number: 0.16 Revision Date: 04-08-2022 |
| Item # | Color | Length |
|---|---|---|
| 50106U 010305M | Black | 305 m |
| 50106U 006305M | Blue | 305 m |
| 50106U 008305M | Gray | 305 m |
