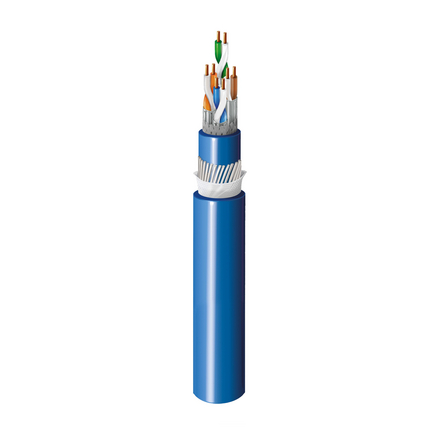

(4)CAT 6A 4PR x 23AWG S/FTP, Solid Bare Copper Conductor, FMPE Insulation, Individual Al-mylar Shield, TC Braid Over Shield, LSZH Inner Jacket, Steel Wire Armoring, Water Blocking Tape, LSZH Outer Jacket, Indoor/Outdoor
| Suitable Applications: | Industrial Ethernet cables are used for interconnecting Industrial Ethernet Switches, IP controllers, media convertors, distributed control system, programmable logic controller and transmitting industrial protocol data signals. These cables are suitable for transmitting 1000BASE-TX Gigabit Ethernet, 100BASE-T Ethernet, 100BaseVG ANYLAN, 155ATM, 622ATM, RS-422, 250MHz Category 6, EtherCAT. These are highly durable & ruggedized cables for both indoor and outdoor use meeting IEC 60332-3-24 and IEC 60754-1 & 2. |
| Element | Size | Material |
|---|---|---|
| Pair(s) | 23 AWG | BC - Bare Copper |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene (Foam) | 1.40 mm (0.0551 in) | 1.White & Blue, 2. White & Orange, 3. White & Green, 4. White & Brown |
| Element | Shield Type | Material |
|---|---|---|
| Pair(s) | Tapes (Each Pair) | Bi-Laminate (Alum+Poly) |
| Material |
|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Shield Type | Material | Coverage |
|---|---|---|
| Braid | Tinned Copper (TC) | 30% |
| Armor Type & Material |
|---|
| SWA - Steel Wire Armor |
| Material |
|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Overall Cable Diameter (Nominal): | 12.5 mm (0.492 in) |
| Max. Conductor DCR | Max. Mutual Capacitance |
|---|---|
| 95 Ohm/km (29 Ohm/1000ft) | 0.56 pF/m (0.17 pF/ft) |
| Max. Delay Skew |
|---|
| 25 ns/100m |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Min. PSANEXT [dB] | Min. PSAACRF [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2.1 | 75.3 | 72.3 | 68.0 | 65.0 | 20.0 | 67.0 | 67.0 | 40.0 | 35.0 |
| 4 | 3.8 | 66.3 | 63.3 | 56.0 | 53.0 | 23.0 | 67.0 | 66.2 | 34.0 | 23.0 |
| 10.0 | 5.9 | 60.3 | 57.3 | 48.0 | 45.0 | 25.0 | 67.0 | 58.2 | 30.0 | 15.0 |
| 16 | 7.5 | 57.2 | 54.2 | 43.9 | 40.9 | 25.0 | 67.0 | 54.1 | 28.0 | 10.9 |
| 31.2 | 10.5 | 52.9 | 49.9 | 38.1 | 35.1 | 23.6 | 67.0 | 48.3 | 25.1 | 5.1 |
| 62.5 | 15.0 | 48.4 | 45.4 | 32.1 | 29.1 | 21.5 | 65.6 | 42.3 | 22.0 | |
| 100 | 19.1 | 45.3 | 42.3 | 28.0 | 25.0 | 20.1 | 62.5 | 38.2 | 20.0 | |
| 125 | 21.5 | 43.8 | 40.8 | 26.1 | 23.1 | 19.4 | 61.0 | 36.3 | 19.0 | |
| 200 | 27.6 | 40.8 | 37.8 | 22.0 | 19.0 | 18.0 | 58.0 | 32.2 | 17.0 | |
| 250 | 31.1 | 39.3 | 36.3 | 20.0 | 17.0 | 17.3 | 56.5 | 30.2 | 16.0 | |
| 300 | 34.3 | 38.1 | 35.1 | 18.5 | 15.5 | 17.3 | 53.3 | 28.7 | ||
| 500 | 45.3 | 34.8 | 31.8 | 14.0 | 11.0 | 17.3 | 52.0 | 24.2 |
| Voltage Rating |
|---|
| 72 V DC |
| Operating |
|---|
| -30°C to + 70°C |
| Installation Min. |
|---|
| 125 mm (4.92 in) |
| Bulk Cable Weight: | 290 kg/km (190 lbs/1000ft) |
| Environmental Suitability: | Indoor, Outdoor |
| Flammability / Reaction to Fire: | IEC 60332-1-2, IEC 60332-3-22 |
| Data Category: | Category 6A |
| ISO/IEC Compliance: | IEC 61156-5, ISO/IEC 11801 |
| Update and Revision: | Revision Number: 0.27 Revision Date: 03-27-2025 |
| Item # | Color | Length |
|---|---|---|
| 50106ASFLA 010305M | Black | 305 m |
| 50106ASFLA 009305M | White | 305 m |
