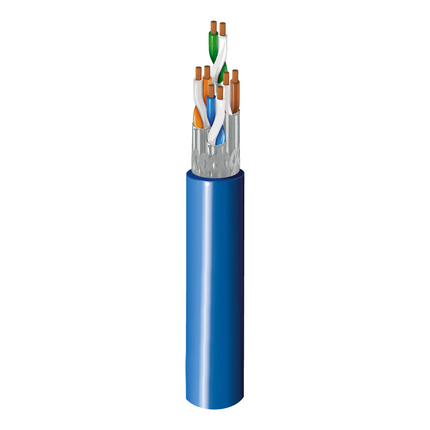

(4)Cat 6A, S/FTP, 4P24AWG/7, Stranded Bare Copper Conductors, Foam PE Insulation, Individual Shielded Pair + Braid shield,TPE Jkt, High-Flex, Drag chain, Torsion-resistant
| Suitable Applications: | Industrial Ethernet cables are used for interconnecting Industrial Ethernet Switches, IP controllers, media convertors, distributed control system, programmable logic controller and transmitting industrial protocol data signals. Support current and future Category 6A applications, such as: 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T.These are Cat 6A cables for indoor use meeting IEC61156, UL 758, TIA 568.2-D |
| Size | Stranding | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|
| 24 AWG | Stranded | BC - Bare Copper | 4 | 8 |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene (Foam) | 1.35 mm (0.0531 in) | 1.White*Blue, 2.White*Orange, 3.White*Green, 4.White*Brown |
| Element | Shield Type | Material |
|---|---|---|
| Individual Shielded Pair | Tape | Bi-Laminate (Alum+Poly) |
| Shield Type | Material | Coverage |
|---|---|---|
| Braid | Tinned Copper (TC) | 60% |
| Material | Nom. Diameter |
|---|---|
| TPE - Thermoplastic Elastomer | 7.5 mm (0.30 in) |
| Max. Conductor DCR | Nom. Characteristic Impedance |
|---|---|
| 87.6@20°C（ Ohm/km） | 100 Ohm |
| Max. Delay | Max. Delay Skew |
|---|---|
| 570 ns/100m | 45 ns/100m |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|---|---|
| 1 | 2.4 | 74.3 | 71.3 | 67.8 | 64.8 | 20.0 |
| 4 | 4.9 | 65.3 | 62.3 | 55.8 | 52.8 | 23.0 |
| 8 | 6.9 | 60.8 | 57.8 | 49.7 | 46.7 | 24.5 |
| 10 | 7.8 | 59.3 | 56.3 | 47.8 | 44.8 | 25.0 |
| 16 | 9.9 | 56.2 | 53.2 | 43.7 | 40.7 | 25.0 |
| 20 | 11.1 | 54.8 | 51.8 | 41.8 | 38.8 | 25.0 |
| 25 | 12.5 | 53.3 | 50.3 | 39.8 | 36.8 | 24.3 |
| 31.25 | 14.1 | 51.9 | 48.9 | 37.9 | 34.9 | 23.6 |
| 62.5 | 20.4 | 47.4 | 44.4 | 31.9 | 28.9 | 21.5 |
| 100 | 26.4 | 44.3 | 41.3 | 27.8 | 24.8 | 20.1 |
| 200 | 38.9 | 39.8 | 36.8 | 21.8 | 18.8 | 18.0 |
| 250 | 44.2 | 38.3 | 35.3 | 19.8 | 16.8 | 17.3 |
| 300 | 49.2 | 37.1 | 34.1 | 18.3 | 15.3 | 16.8 |
| 400 | 58.3 | 35.3 | 32.3 | 15.8 | 12.8 | 15.9 |
| 500 | 66.6 | 33.8 | 30.8 | 13.8 | 10.8 | 15.2 |
| UL Temperature |
|---|
| -40°C to +80°C |
| Environmental Suitability: | Indoor, Oil Resistance |
| Data Category: | Category 6A |
| Notes: | Flexibility: drag chain: 20 million cycles, bending Radius: 75mm, s=30 cycles/min, chain length : 1m; Torsion Test: Stress : +/- 180°, weight : 300g, s=30 cycles/min, torsion length: 1m |
| Update and Revision: | Revision Number: 0.17 Revision Date: 06-11-2025 |
