5002UP - Commercial Audio, 4 Conductor 12 AWG BC, CL3

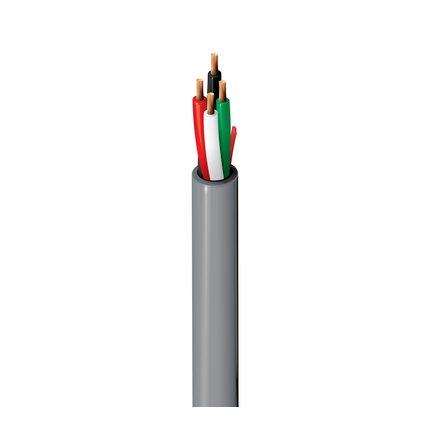

Commercial Audio Cable, 4 Conductor 12 AWG, highly flexible stranded (65x30) bare copper conductors with PVC insulation, CL3, PVC jacket with ripcord

Product Overview

Suitable Applications: High Flex Audio/Speaker

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Conductor(s)412 AWG65x30BC - Bare Copper
Insulation
ElementMaterialNom. ThicknessColor Code
Conductor(s)PVC - Polyvinyl Chloride0.020 in (0.51 mm)Black, White, Red, Green
Outer Shield
Material
No Shield
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.022 in (0.56 mm)0.365 in (9.27 mm)Yes
Overall Cable Diameter (Nominal): 0.365 in (9.27 mm)

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
Conductor(s)1.56 Ohm/1000ft (5.12 Ohm/km)32 pF/ft (100 pF/m)21 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
75°C-20°C to +75°C
Bend Radius
Stationary Min.Installation Min.
3.7 in (94 mm)3.7 in (94 mm)
Max. Pull Tension: 338 lbs (153 kg)
Bulk Cable Weight: 113 lbs/1000ft (168 kg/km)

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum)
Flammability / Reaction to Fire: UL1685 UL Loading
NEC / UL Compliance: Article 725, CL3
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.355 Revision Date: 06-02-2022

Part Numbers

Variants
Item #ColorPutup TypeLengthUPC
5002UP 010500BlackReel500 ft612825155720
5002UP 0101000BlackReel1,000 ft612825155799
5002UP D15500BlueReel500 ft611589226523
5002UP 008500GrayReel500 ft612825155768
5002UP 0081000GrayReel1,000 ft612825155751
5002UP 005500Green, DarkReel500 ft612825155744
5002UP 009500WhiteReel500 ft612825155782
5002UP 0091000WhiteReel1,000 ft612825155775
