5002U1 - Security & Sound, 4 Conductor 12 AWG TC, Waterblocked, CL3

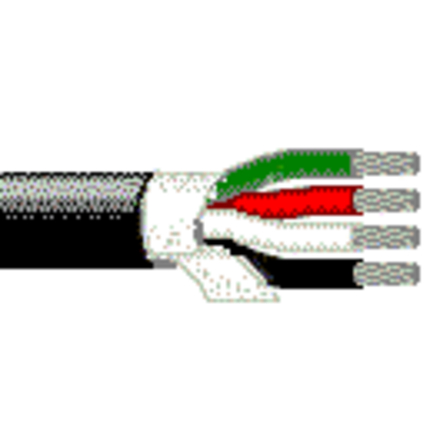

Security & Commercial Audio Cable, 4 Conductor 12 AWG stranded (19x25) tinned copper conductors with PVC insulation, Waterblocking tape, CL3, PVC jacket with ripcord.

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1219x25TC - Tinned Copper4
Conductor Count: 4
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.014 in
Color Chart
NumberColor
1Black
2Red
3White
4Green
Outer Shield Material
Material
No Shield
Table Notes: Outer Shield Waterblocking Tape
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.377 in0.029 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
1.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
32 pF/ft
Current
Max. Recommended Current [A]
21 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 105°C
Operating Temp Range: -20°C To +105°C

Mechanical Characteristics

Bulk Cable Weight: 113 lbs/1000ft
Max. Pull Tension: 304 lbs
Min Bend Radius/Minor Axis: 4 in

Standards

NEC Articles: Article 725
NEC/(UL) Compliance: CL3

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2011-11-11
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes
Suitability - Outdoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
5002U1 0101000BlackReel1,000 ft612825155737
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.261 Revision Date: 06-24-2020
Date: 2011-11-11
No accessories are available for this product
