5000UE - Security & Sound, 2 Conductor 12 AWG, BC, Unshielded, CL3R-FPLR

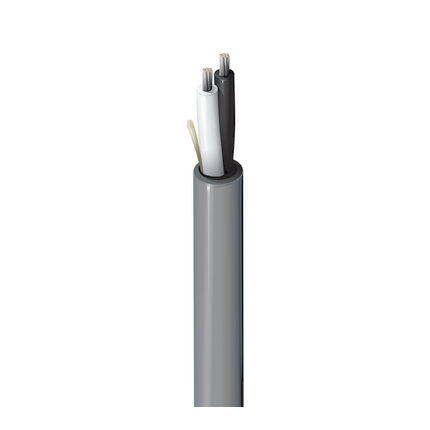

Security & Commercial Audio Cable, Riser-CL3R-FPLR 2-12 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Fire Alarm Systems (Red only)

Construction Details

Conductor
ElementNo. of ElementsSizeStrandingMaterial
Conductor(s)212 AWG19x25BC - Bare Copper
Insulation
ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Conductor(s)PP - Polypropylene0.011 in (0.28 mm)0.113 in (2.87 mm)Black, White
Outer Shield
Material
No Shield
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.017 in (0.43 mm)0.26 in (6.6 mm)Yes
Overall Cable Diameter (Nominal): 0.26 in (6.6 mm)

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
Conductor(s)1.6 Ohm/1000ft24 pF/ft (79 pF/m)30 Amps per conductor @ 30°C
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
75°C-20°C to +75°C
Bend Radius
Stationary Min.Installation Min.
2.6 in (66 mm)2.6 in (66 mm)
Max. Pull Tension: 152 lbs (68.9 kg)
Bulk Cable Weight: 51 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor - Riser, Indoor
Flammability / Reaction to Fire: UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 725, Article 760, CL3R, FPLR
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 6000UE

History

Update and Revision: Revision Number: 0.518 Revision Date: 02-15-2024

Part Numbers

Variants
Item #ColorPutup TypeLengthUPCFootnote
5000UE 010Z500BlackReelTuff Box500 ft612825434085
5000UE 0101000BlackReel1,000 ft612825154600C
5000UE 010Z1000BlackReelTuff Box1,000 ft612825432883
5000UE 010Z1000BlackReelTuff Box1,000 ft612825432883
5000UE 0105000BlackReel5,000 ft612825437864
5000UE 008500GrayReel500 ft612825154594C
5000UE 008Z500GrayReelTuff Box500 ft612825434061
5000UE 0081000GrayReel1,000 ft612825336310C
5000UE 008Z1000GrayReelTuff Box1,000 ft612825432869
5000UE 008Z1000GrayReelTuff Box1,000 ft612825432869
5000UE 0021000RedReel1,000 ft612825154587C
5000UE 002Z1000RedReelTuff Box1,000 ft612825432852
5000UE 002Z1000RedReelTuff Box1,000 ft612825432852
