5000U1 - Security & Sound, 2 Conductor-12 AWG TC, CL3

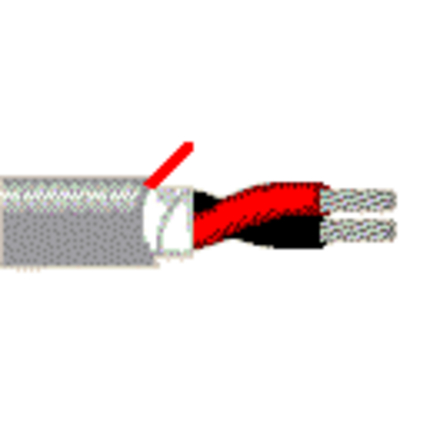

Security & Commercial Audio Cable, 2 Conductor 12 AWG stranded (19x25) tinned copper conductors with PVC insulation, Waterblocking tape, CL3, PVC jacket with ripcord.

Product Overview

Suitable Applications: Intercom/PA systems, Sound/Audio systems

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Conductor(s)212 AWG19x25TC - Tinned Copper
Insulation
ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Conductor(s)PVC - Polyvinyl Chloride0.014 in (0.36 mm)0.119 in (3.02 mm)Black, White
Outer Shield
Material
No Shield
Outer Jacket
MaterialNom. ThicknessNom. Diameter
PVC - Polyvinyl Chloride0.025 in (0.64 mm)0.320 in
Overall Cable Diameter (Nominal): 0.320 in

Electrical Characteristics

Electricals
Nom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
1.7 Ohm/1000ft32 pF/ft (100 pF/m)12 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
105°C-30°C to 105°C
Bend Radius
Stationary Min.Installation Min.
3.2 in (81 mm)3.2 in
Max. Pull Tension: 152 lbs (68.9 kg)
Bulk Cable Weight: 59 lbs/1000ft

Standards and Compliance

Environmental Suitability: Outdoor - Water Exposure, Indoor, Outdoor
Flammability / Reaction to Fire: UL1685 UL Loading
NEC / UL Compliance: Article 725, CL3
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.241 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorPutup TypeLengthUPC
5000U1 0101000BlackReel1,000 ft612825154785
5000U1 0081000GrayReel1,000 ft612825154778
