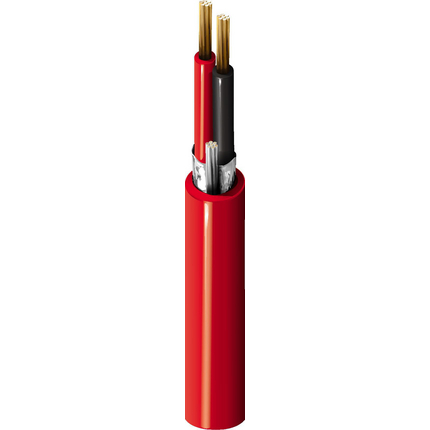

(4)Safe-T-Line 1 Pair x AWG12 (7x22 SBC) Fire resistant Multi-conductor, BS 6387 CWZ, EN 50200 PH120, EN60331-2 , Shielded, Ceramifiable Silicone insulation, Low Smoke Zero Halogen Jacket
| Suitable Applications: | Fire Resistant Applications With Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners |
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 12 AWG | 7x20 | BC - Bare Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | Silicone Rubber | 0.034 in (0.86 mm) | 0.161 in (4.09 mm) | Red, Black |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Nomex®) | 100% | 14 AWG (7x22) TC |
| Nom. Diameter |
|---|
| 0.417 in (10.6 mm) |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.045 in (1.1 mm) | 0.417 in |
| Overall Cable Diameter (Nominal): | 0.417 in (10.6 mm) |
| Element | Nom. Conductor DCR | Max. Current |
|---|---|---|
| Pair(s) | 1.72 Ohm/1000ft | 21 Amps per Conductor at 25ºC |
| UL Voltage Rating |
|---|
| 300 V |
| UL Temperature | Operating |
|---|---|
| 105°C | -20°C To 105°C |
| Stationary Min. | Installation Min. |
|---|---|
| 4.17 in (106 mm) | 4.17 in (106 mm) |
| Max. Pull Tension: | 182 lbs (82.6 kg) |
| Bulk Cable Weight: | 109 lbs/1000ft |
| Environmental Suitability: | Indoor, Outdoor, Sunlight Resistance |
| Flammability / Reaction to Fire: | UL 1666 riser, 1202, BS 6387 CWZ |
| NEC / UL Compliance: | Article 760, FPLR, ITC, PLTC |
| European Directive Compliance: | EU Directive 2011/65/EU (RoHS 2) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s): | EN50200 (PH120) |
| Plenum Number: | No |
| Update and Revision: | Revision Number: 0.38 Revision Date: 07-02-2025 |
