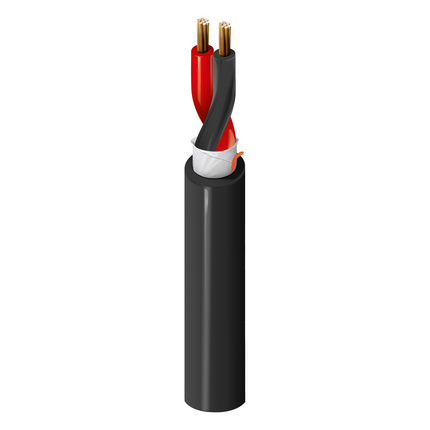

(4)Security & Commercial Audio Cable, 2-10 AWG high stranded bare copper conductors with polypropylene insulation, Waterblocking tape, LSZH jacket with ripcord
Life Cycle Status: Capability
| Suitable Applications: | Sound, audio, intercom, PA, Home Theatre, Stadium and Arena speaker systems; Audio use only |
| Life Cycle: | Capability - the product is not yet standardly available for orders but can be manufactured |
| No. of Elements | Size |
|---|---|
| 2 | 10 |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PP - Polypropylene | 3.90 mm (0.154 in) | Black, Red |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.9 mm (0.035 in) | 10.2 mm (0.402 in) | Yes |
| Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|
| 60 pF/m (18 pF/ft) | 27.8 Amps per Conductor |
| Voltage Rating |
|---|
| 300 V |
| Operating | Installation | Storage |
|---|---|---|
| -20°C To +70°C | -20°C To +70°C | -30°C To +70°C |
| Installation Min. |
|---|
| 102 mm (4.02 in) |
| Max. Pull Tension: | 500 N (110 lbf) |
| Environmental Suitability: | Indoor, Outdoor, Non-Halogenated, Sunlight Resistance - UL 1581 sec 1200 Black Only |
| Flammability / Reaction to Fire: | IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| CEC / C(UL) Compliance: | . |
| European Halogen Free Standards: | IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60% |
| Notes: | This is a preliminary Technical Design Specification (TDS). The minimum business quantity to offer is 3km for the first order. This product will have Black as standard color and 305mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 4T00UP. Please liaise with your Belden representative for confirmation. |
| Update and Revision: | Revision Number: 0.1 Revision Date: 09-08-2026 |
