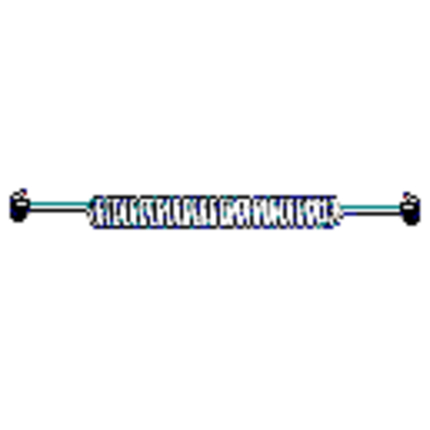

49440 - Molded Cable Assemblies - Modular Keyboard Assembly


4-position modular retractile, used to rapidly interconnect electronic computers and business machines, polypropylene insulation, unshielded, polyurethane jacket.

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Conductors
2619x38TC - Tinned Copper0.51 in4
Conductor Count: 4
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.006 in
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PUR - Polyurethane.093 x .198 in0.03 in

Electrical Characteristics

Voltage
UL Voltage Rating
30 V (UL AWM Style 20197)

Temperature Range

UL Temp Rating: 60°C (UL AWM Style 20197)

Standards

UL AWM Style Compliance: UL Style 20197 (30 V 60°C) (cable only)

Applicable Environmental and Other Programs

EU Directive Compliance: EU Directive 2003/11/EC (BFR)
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: 30 V RMS (UL AWM Style 20197)

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorLengthUPC
49440 010S2Black0 ft612825154037

Product Notes

Notes: Positive locking latch prevents connector from vibrating loose. Polarized connector prevents improper insertion. No tools required for installation.

History

Update and Revision: Revision Number: 0.175 Revision Date: 04-28-2020
