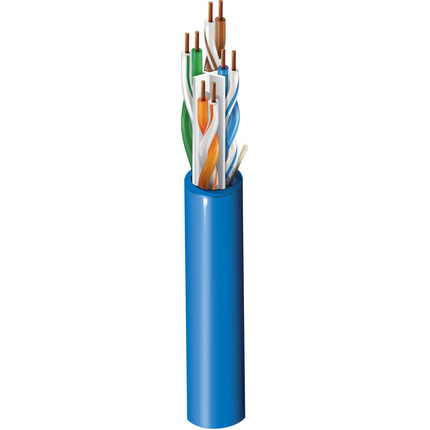

4813 - Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMP
Networking & Data Cable
(518)Industrial Ethernet Cable
(80)Enterprise Category Cable
(179)Industrial Protocol / Data Bus Cable
(257)Audio Cable
(383)Digital
(53)Analog
(102)Microphone
(42)Nurse Call
(23)Audio Over Internet Protocol (IP)
(7)Speaker & Control
(207)Video Cable
(363)75 Ohm SDI Coax
(119)Camera Cable
(49)CATV & Satelite
(100)CCTV & Security
(33)RGB Cable
(68)Video Over Internet Protocol (IP) Cable
(10)Coax & Triax Cable
(508)50 Ohm Transmission Cable
(88)75 Ohm SDI Coax
(112)CATV & Satelite Cable
(92)Triax Cable
(19)DS3 & DS4 Cable
(38)Conformable Cable
(12)Mil-Spec Cable
(5)CCTV & Security Cable
(26)Computer and Instrumentation Cable
(10)Multi-Media Cable
(44)Fiber Cable
(5212)Indoor Fiber Cable
(1110)Indoor/Outdoor Fiber Cable
(2297)Outdoor Fiber Cable
(1579)SMPTE Cable
(13)Tactical Fiber Cable
(238)Flexible Automation Cable
(107)300V (PLTC) & 600V (TC-ER) Control Cable
(82)Flex Data Cable
(7)Vision Systems
(5)Flex VFD Cable
(13)Tray Cable
(1049)Instrumentation Cable
(337)UL 300V PLTC/PLTC-ER Cable
(182)UL 600V TC/TC-ER Pairs/Triads
(118)UL Thermocouple
(35)CSA ACIC Cable
(35)IMSA
(2)Control / Power Cable
(729)VFD Cable
(115)Digital Electricity
(48)Hybrid Fiber-Copper Cable
(198)Safety, Sound, & Security Cable
(502)Audio, Sound, & Control Cable
(175)Access Control Cable
(21)Fire Alarm Cable
(72)Nurse Call
(15)Security & Alarm Cable
(174)Surveillance Cable
(45)Connectors & Outlets
(2152)Modular Couplers
(11)Modular Plugs
(23)Receptacles
(7)Coax Connectors
(82)12 GHz BNC Connectors
(10)6 GHz BNC Connectors
(18)ProSNS Connectors
(36)Double Bubble Connectors
(18)Multi Media Modules
(15)Copper Connector Accessories
(11)Fiber Connectors
(45)Mechanical Connectors
(20)Fiber Connector Accessories
(8)Adapters
(2)Fusion Splice-On Connectors
(15)Valve Connectors
(404)Cross Connect Systems
(12)Category 6A Cross Connect Systems
(3)Category 6 Cross Connect Systems
(5)Category 5E Cross Connect Systems
(4)Power Connectors
(528)M12 Power
(161)ST Series
(59)CA Series
(12)7/8" Circular Connectors
(133)M23 Circular Connectors
(47)Mini Power
(58)Receptacles
(12)Tees, Reducers & Adapters
(10)Single-Ended Cordsets
(16)Double-Ended Cordsets
(20)G-Series
(58)Sensor Actuator Connectors
(829)Workstation Outlets
(71)KeyConnect Outlets
(12)MDVO-Style Outlets
(10)MediaFlex System
(17)Multi Media Modules
(17)Workstation Consolidation
(15)Data Connectors
(107)Assemblies & Cordsets
(160)Double-Ended Cordsets
(65)Pigtails
(15)Pre-Terminated Assemblies
(45)AV Assemblies
(8)Patch Panels & Components
(303)Fiber Patch Panels
(34)Preloaded Coupler Patch Panels
(2)Modular (Empty) Panels
(4)Fiber Cassettes
(75)Adapter Frames
(63)Adapter Strips
(13)Fiber Wall Mounts
(6)Patch Panel Accessories
(33)Industrial Networking
(922)SPIDER Fast/Gigabit Switches
(92)Managed Switches
(244)BOBCAT
(44)GECKO Switches
(4)MSP – Modular Gigabit Switches
(19)MSP – The Modular Gigabit Switches (Layer 2/3)
(11)MSM - Configurable Media Modules for MSP Switches
(8)MICE - Modular Switches
(31)RSB20 Basic Switches
(35)RS20/30/40 Switches
(56)RSR Switches
(17)RED25 Switches
(3)RSP/RSPL/RSPS/RSPE Switches
(35)Rack Mount Switches
(96)DRAGON MACH4000
(12)GREYHOUND 1020/1030
(9)GREYHOUND 1040
(20)MACH1020/1030
(2)MACH1040
(3)MACH4000
(21)MACH100
(29)IP65/IP67 Switches & Routers
(51)Embedded Ethernet
(3)Security & Firewalls
(19)MPLS Backbone Switches
(90)Wireless
(44)Cellular Routers
(10)Wireless LAN Devices
(10)BAT450-F WLAN Access Points
(1)BAT867 - Industrial Wireless Access Points
(5)BAT-C2
(3)OpenBAT-R / -F
(1)Wireless LAN Controller
(1)Antennas
(14)Accessories
(9)Software
(85)Secure Remote Access
(8)Network Management
(16)Software Tools
(4)Device Software
(57)Accessories
(160)Transceivers
(62)Fast Ethernet SFP Transceiver
(14)Fast Ethernet Bi-Directional SFP Transceivers
(6)Gigabit Ethernet SFP Transceiver
(14)Gigabit Ethernet Bi-Directional SFP Transceiver
(12)2.5 Gigabit Ethernet SFP Transceiver
(5)10 Gigabit Ethernet XFP and SFP+ Transceivers
(11)Auto-Configuration Adapter – ACA
(11)Connectors
(5)Mounting Accessories
(19)Miscellaneous Accessories
(12)Power over Ethernet (PoE) Injector
(3)Power Supplies and Cables
(18)Serial to Ethernet converters
(4)Terminal Cables
(6)Wireless Accessories
(21)FiberINTERFACES
(47)Fieldbus Repeater
(31)Geniusbus Repeater
(2)Modbus Plus Repeater
(2)Profibus Repeater
(24)Universal Fieldbus Repeater
(3)Fiber Converters
(6)OptoQuick Components
(7)Optical Bypass Relay OBR40
(3)Racks & Cabinets
(335)Seismic Cabinets
(10)Consolidation-MDU Enclosures
(2)Cabinet Individual Component Ordering Options
(20)Zone Enclosures
(3)Racks
(26)2 Post Rack
(12)Aluminum Knockdown
(1)Swing Rack
(1)Steel Knockdown
(4)Steel Welded
(2)Value Series Rack Kit
(4)4 Post Rack
(3)Seismic Rack
(3)Wall Mount Rack
(8)Heat Containment
(5)Security & Access Control
(4)Cable Management
(32)Cable Runways
(200)Rack & Cabinets Accessories
(29)Shelves
(1)Cabinet Accessories
(18)Lacing Accessories
(6)Lacing/PDU Mounting Panels
(1)Bottom Seal Skirts
(2)Cabinet Caster Kit
(1)Frame & Rail Brush Kits
(3)Front to Rear Cable Manager
(1)Top Cable Trough
(1)Vertical Finger Managers
(2)Filler (Blanking) Panels
(3)Grounding & Bonding
(3)Mounting Hardware
(1)PDU Accessories
(1)Zero U Vertical Patch Panel
(2)Termination Tools & Accessories
(48)Fiber Splicers & Tool Kits
(9)Label & Identification
(7)Fanout & Breakout Kits
(2)Outlet & Hardware Accessories
(17)I/O Systems
(70)Ethernet I/O Modules
(34)IO-Link Masters and Devices
(24)Fieldbus I/O Modules
(10)| Suitable Applications: | Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE |
| Patent: | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents. |
| AWG | Stranding | Material | Number of Pairs |
|---|---|---|---|
| 23 | Solid | BC - Bare Copper | 4 |
| Material | Color Code |
|---|---|
| PO+FEP - Polyolefin + Fluorinated Ethylene Propylene | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Bonded-Pair: | No |
| Separator Material | Material | Material Trade Name | Nom. Diameter | Ripcord |
|---|---|---|---|---|
| Center Member (Patented X-Spline®) | PVC - Polyvinyl Chloride | Flamarrest® | 0.258 in | Yes |
| Max. Conductor DCR | Max. DCR Unbalance | Max. DCR Unbalanced Between Pairs [%] | Max. Capacitance Unbalance | Nom. Mutual Capacitance | Nom. Velocity of Prop. |
|---|---|---|---|---|---|
| 67 Ohm/km | 3% | 5% | 90 pF/100m | 15.5 pF/ft | 70% |
| Frequency [MHz] | Max. Delay | Max. Delay Skew | Nom. Velocity of Propagation (VP) [%] |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 45 ns/100m | 70% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.772 MHz | 1.7 dB/100m | 83.0 dB | 82.0 dB | 81.3 dB | 80.3 dB | 77.0 dB | 75.0 dB | 102 ± 15 Ohm | 40.0 dB | 37.2 dB | ||
| 1 MHz | 1.9 dB/100m | 81.3 dB | 80.3 dB | 79.4 dB | 78.4 dB | 74.8 dB | 72.8 dB | 20.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 40.0 dB | 35.0 dB |
| 4 MHz | 3.5 dB/100m | 72.3 dB | 71.3 dB | 68.8 dB | 67.8 dB | 62.8 dB | 60.8 dB | 23.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 40.0 dB | 23.0 dB |
| 8 MHz | 4.9 dB/100m | 67.8 dB | 66.8 dB | 62.8 dB | 61.8 dB | 56.7 dB | 54.7 dB | 24.5 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 40.0 dB | 16.9 dB |
| 10 MHz | 5.5 dB/100m | 66.3 dB | 65.3 dB | 60.8 dB | 59.8 dB | 54.8 dB | 52.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 40.0 dB | 15.0 dB |
| 16 MHz | 7.0 dB/100m | 63.2 dB | 62.2 dB | 56.3 dB | 55.3 dB | 50.7 dB | 48.7 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 38.0 dB | 10.9 dB |
| 20 MHz | 7.8 dB/100m | 61.8 dB | 60.8 dB | 54.0 dB | 53.0 dB | 48.8 dB | 46.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 37.0 dB | 9.0 dB |
| 25 MHz | 8.7 dB/100m | 60.3 dB | 59.3 dB | 51.6 dB | 50.6 dB | 46.8 dB | 44.8 dB | 25.0 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 36.0 dB | 7.0 dB |
| 31.25 MHz | 9.8 dB/100m | 58.9 dB | 57.9 dB | 49.1 dB | 48.1 dB | 44.9 dB | 42.9 dB | 24.3 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 35.1 dB | |
| 62.5 MHz | 14.1 dB/100m | 54.4 dB | 53.4 dB | 40.3 dB | 39.3 dB | 38.9 dB | 36.9 dB | 22.2 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 32.0 dB | |
| 100 MHz | 18.0 dB/100m | 51.3 dB | 50.3 dB | 33.3 dB | 32.3 dB | 34.8 dB | 32.8 dB | 20.8 dB | 100 ± 15 Ohm | 100 ± 15 Ohm | 30.0 dB | |
| 155 MHz | 22.8 dB/100m | 48.4 dB | 47.4 dB | 25.7 dB | 24.7 dB | 31.0 dB | 29.0 dB | 19.5 dB | 100 ± 22 Ohm | 100 ± 15 Ohm | 28.1 dB | |
| 200 MHz | 26.2 dB/100m | 46.8 dB | 45.8 dB | 20.6 dB | 19.6 dB | 28.8 dB | 26.8 dB | 18.7 dB | 100 ± 22 Ohm | 100 ± 15 Ohm | 27.0 dB | |
| 250 MHz | 29.6 dB/100m | 45.3 dB | 44.3 dB | 15.8 dB | 14.8 dB | 26.8 dB | 24.8 dB | 18.0 dB | 100 ± 32 Ohm | 100 ± 15 Ohm | 26.0 dB | |
| 300 MHz | 32.7 dB/100m | 44.1 dB | 43.1 dB | 11.4 dB | 10.4 dB | 25.3 dB | 23.3 dB | 17.5 dB | 100 ± 32 Ohm | 100 ± 15 Ohm | ||
| 350 MHz | 35.6 dB/100m | 43.1 dB | 42.1 dB | 7.5 dB | 6.5 dB | 23.9 dB | 21.9 dB | 17.0 dB | 100 ± 32 Ohm | 100 ± 15 Ohm | ||
| 400 MHz | 38.4 dB/100m | 42.3 dB | 41.3 dB | 3.9 dB | 2.9 dB | 22.8 dB | 20.8 dB | 16.6 dB | 100 ± 32 Ohm | 100 ± 15 Ohm | ||
| 450 MHz | 41.0 dB/100m | 41.5 dB | 40.5 dB | 0.5 dB | 21.7 dB | 19.7 dB | 16.2 dB | 100 ± 32 Ohm | 100 ± 15 Ohm | |||
| 500 MHz | 43.6 dB/100m | 40.8 dB | 39.8 dB | 20.8 dB | 18.8 dB | 15.9 dB | 100 ± 32 Ohm | 100 ± 15 Ohm | ||||
| 550 MHz | 46.0 dB/100m | 40.2 dB | 39.2 dB | 20.0 dB | 18.0 dB | 15.6 dB | 100 ± 32 Ohm | 100 ± 15 Ohm | ||||
| 600 MHz | 48.4 dB/100m | 39.6 dB | 38.6 dB | 19.2 dB | 17.2 dB | 15.4 dB | 100 ± 32 Ohm | 100 ± 15 Ohm | ||||
| 650 MHz | 50.6 dB/100m | 39.1 dB | 36.1 dB | 18.5 dB | 15.5 dB | 15.1 dB | ||||||
| 750 MHz | 55.0 dB/100ft | 38.2 dB | 35.2 dB | 17.3 dB | 14.3 dB | 14.7 dB | ||||||
| 860 MHz | 59.6 dB/100ft | 37.3 dB | 34.3 dB | 16.1 dB | 13.1 dB | 14.3 dB |
| UL Voltage Rating |
|---|
| 300 V (CMP), 300 V (CL3P) |
| UL Rating. | Operating | Installation | Storage |
|---|---|---|---|
| 90°C | -20°C To +75°C | 0°C To +50°C | -20°C To +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 1.0 in | 2.75 in |
| Max. Pull Tension: | 25 lbs |
| Bulk Cable Weight: | 33 lbs/1000ft |
| Environmental Suitability: | Plenum, Indoor |
| Sustainability: | Product Lens™, Environmental Product Declaration (EPD) Available |
| Flammability / Fire Resistance: | NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2 |
| NEC / UL Compliance: | 800, CMP;CMP-LP (0.6A);CL3P-LP (0.6A) |
| CEC / C(UL) Compliance: | CMP |
| ICEA Compliance: | S-116-732-2013 |
| IEEE Compliance: | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance: | ANSI/NEMA WC-66 |
| Data Category: | Category 6 |
| TIA/EIA Compliance: | ANSI/TIA-568.2-D Category 6 |
| Cenelec Compliance: | Segregation class according EN50174-2=a |
| CPR Euroclass: | Eca |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number: | 4812 |
| Item # | Color | Putup Type | Length | UPC |
|---|---|---|---|---|
| 4813 0101000 | Black | Reel | 1,000 ft | 612825153665 |
| 4813 0101000 | Black | Reel | 1,000 ft | 612825153665 |
| 4813 0103000 | Black | Reel | 3,000 ft | 612825153672 |
| 4813 0103000 | Black | Reel | 3,000 ft | 612825153672 |
| 4813 D151000 | Blue | Reel | 1,000 ft | 612825153597 |
| 4813 D15A1000 | Blue | Reel-in-Box | 1,000 ft | 612825153580 |
| 4813 D151000 | Blue | Reel | 1,000 ft | 612825153597 |
| 4813 D15A1000 | Blue | Reel-in-Box | 1,000 ft | 612825153580 |
| 4813 0081000 | Gray | Reel | 1,000 ft | 612825153627 |
| 4813 0081000 | Gray | Reel | 1,000 ft | 612825153627 |
| 4813 0051000 | Green | Reel | 1,000 ft | 612825153610 |
| 4813 0091000 | White | Reel | 1,000 ft | 612825153641 |
| 4813 0091000 | White | Reel | 1,000 ft | 612825153641 |
| 4813 009A1000 | White | Reel-in-Box | 1,000 ft | 612825153634 |
| 4813 009A1000 | White | Reel-in-Box | 1,000 ft | 612825153634 |
| 4813 0092500 | White | Reel | 2,500 ft | 612825153658 |
| 4813 0092500 | White | Reel | 2,500 ft | 612825153658 |
| 4813 0041000 | Yellow | Reel | 1,000 ft | 612825153603 |
| Notes: | Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 600 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. |
| Update and Revision: | Revision Number: 0.429 Revision Date: 09-30-2020 |
