46381NH - Speaker Cable LSZH 2x2.5mm², CPR Eca.


Speaker Cable, 2 Conductor 2.5mm² (50 x 0.25mm) Oxygen-Free Bare Copper (High Conductivity), PE Insulation, LSZH Jacket, Flexible, CPR Euroclass Eca.

Product Overview

Suitable Applications: Speaker cable for use in indoor or outdoor applications

Physical Characteristics (Overall)

Conductor
StrandingMaterialCross SectionConstruction n x D
50x30BC - Bare Copper2.50 mm²50x0.25 mm
Conductor Count: 2
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene2.90 mm0.07 mm

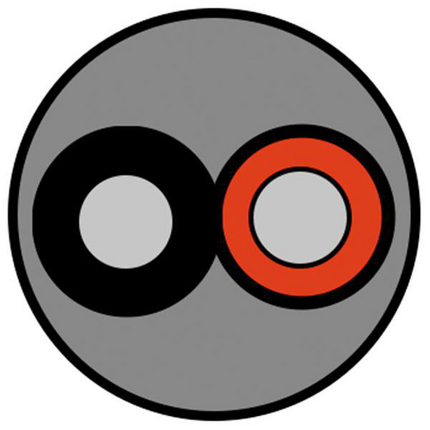

Color Chart
NumberColor
Wire 1Black
Wire 2Red
Outer Jacket
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant)8.05 mm0.10 mm
Table Notes: Flexible with Matte Finish

Construction and Dimensions

Cabling
Description
2 wires twisted

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
8 Ohm/km
Capacitance
Nom. Capacitance
76 pF/m
Min Insulation Resistance: 200 MOhm*km
Inductance
Nominal Inductance
Max. 1.20 µH/m
Voltage
Voltage Rating [V]
300 V

Temperature Range

Storage Temperature Range: -40°C To +70°C
Operating Temp Range (Flexible Install): -5°C To +60°C
Operating Temp Range (Fixed Install): -40°C To +70°C

Mechanical Characteristics

Max. Pull Tension: 350 N

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 - Halogen Amount: Zero
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: 4.3

Related Part Numbers

Variants
Item #ColorPut-Up TypeLengthEAN
46381NH.00500GrayReel500 m8719605007483

History

Update and Revision: Revision Number: 0.166 Revision Date: 04-08-2022
Date: 2004-01-01
Belden Brilliance® Speaker Cables
Description: Belden has introduced a new line of Brilliance® FRNC speaker cables, designed for audio professionals who require exceptionally clear and very precise sound for PA installations.
Version: NP 109E
