46379NH - SPEAKERCABLE LSZH 4x2.5mm²


SPEAKERCABLE LSZH 4x2.5mm²

Product Overview

Environmental Space: Indoor - Euroclass Eca
Suitable Applications: Speaker cable for use in indoor or outdoor applications

Physical Characteristics (Overall)

Conductor
StrandingMaterialCross SectionConstruction n x D
50x30BC - Bare Copper2.50 mm²50x0.25 mm
Conductor Count: 4
Conductor Size: N/A
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPolyethylene2.90 mm0.07 mm
Color Chart
NumberColor
Wire 1Black
Wire 2Red
Wire 3White
Wire 4Green
Outer Jacket Material
MaterialColorNominal DiameterDiameter +/- Tolerance
Flexible LSZH / FRNC with matte finishGray (like RAL 7000) or Black (UV resistant)10.00 mm0.20 mm

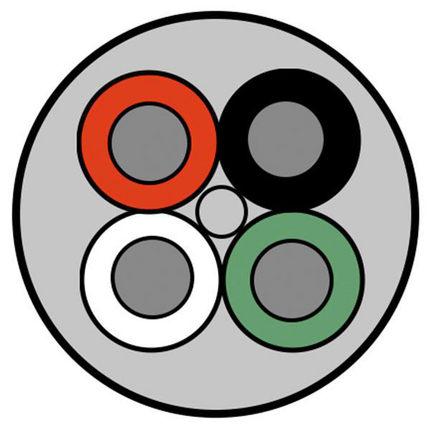

Construction and Dimensions

Cabling
Description
1 center filler + 4 wires twisted

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
8 Ohm/km
Capacitance
Nom. Capacitance
76 pF/m
Inductance
Nominal Inductance
Max. 1.20 µH/m
Voltage
Voltage Rating [V]
300 V

Temperature Range

Storage Temp Range: -40°C To +70°C
Operating Temp Range (Flexible Install): -5°C To +60°C
Operating Temp Range (Fixed Install): -40°C To +70°C

Mechanical Characteristics

Max Recommended Pulling Tension: 700 N

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2
Amount of Halogen acc. to IEC 60754-1 & EN50267-1: Zero

Part Number

Variants
Item #ColorLength
46379NH.00100Black100 m
46379NH.00500Black500 m

History

Revision Number: 1
Date: 2004-01-01
Belden Brilliance® Speaker Cables
Description: Belden has introduced a new line of Brilliance® FRNC speaker cables, designed for audio professionals who require exceptionally clear and very precise sound for PA installations.
Version: NP 109E
