46349CH - MICROPHONE CABLE 24 AWG FRNC/LSZH-C


MICROPHONE CABLE 24AWG FRNC/LSZH-C

Product Overview

Suitable Applications: Microphone cable

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialConstruction n x D
2432x38BC - Bare Copper32x0.10 mm
Conductor Count: 2
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene1.45 mm0.05 mm
Color Chart
NumberColor
Wire 1Red
Wire 2Blue
Outer Shield Material
TypeMaterialMin. Coverage [%]
Spiral Serve / ScreenBare Copper (BC)90%
Outer Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant)6.10 mm0.20 mm

Construction and Dimensions

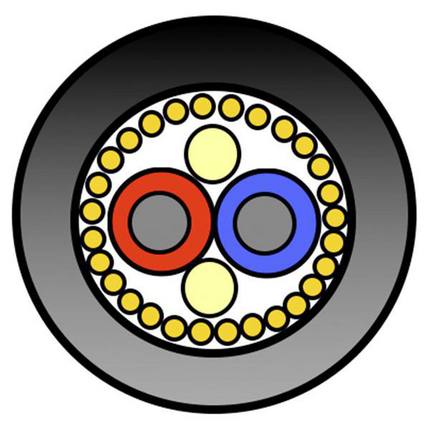

Cabling
DescriptionFiller
2 fillers + 2 wires twistedCotton (2x)

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
78 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
60 pF/m110 pF/m

Temperature Range

Storage Temp Range: -15°C To +60°C
Operating Temp Range (Fixed Install): -30°C To +70°C

Mechanical Characteristics

Min Bend Radius During Installation: 61 mm

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-3-24
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: 4.3

Part Number

Variants
Item #ColorPutup TypeLengthEAN
46349CH.00500BlackReel500 m8719605007407
46349CH.001000BlackReel1,000 m8719605007391

History

Update and Revision: Revision Number: 0.151 Revision Date: 06-24-2020
Date: 2005-01-01
No accessories are available for this product
