4541UE - Security & Sound, 2 Pair 22 AWG BC, LSZH


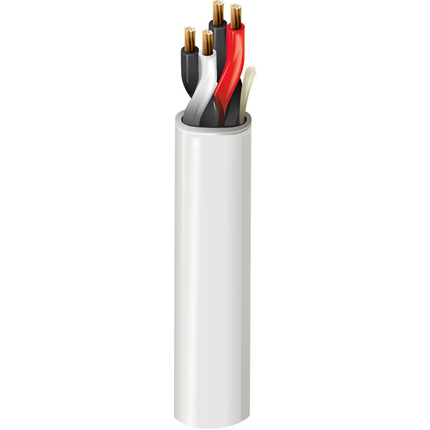

Security & Commercial Audio Cable, 2-22 AWG stranded bare copper pairs with polypropylene insulation, LSZH jacket with ripcord

Product Overview

Suitable Applications: Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power-Limited Controls

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Pairs
227x30BC - Bare Copper0.75 mm2
Conductor Count: 4
Total Number of Pairs: 2
Insulation
TypeMaterialNominal DiameterDiameter +/- ToleranceNominal Wall Thickness
InsulationPE - Polyethylene1.07 mm0.05 mm0.2 mm
Color Chart
NumberColor
Pair 1Black & Red
Pair 2Black & White
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
LSZH - Low Smoke Zero Halogen (Flame Retardant)5.3 mm0.4 mmProvided under the sheath

Construction and Dimensions

Cabling
Description
2 pairs twisted

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
54 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
105 pF/m190 pF/m
Current
Max. Recommended Current [A]
2.2 Amps per Conductor
Voltage
Voltage Rating [V]
300 V

Temperature Range

Installation Temp Range: -20°C To +70°C
Storage Temp Range: -30°C to +70°C
Operating Temp Range: -20°C To +70°C

Mechanical Characteristics

Max. Pull Tension: 60 N
Min Bend Radius During Installation: 53 mm
Min Setting Radius: 26.5 mm

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2013-10-02

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: 4.3
IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke Density Min. Transmittance: IEC 61034-2

Part Number

Variants
Item #ColorPutup TypeLengthEAN
4541UE.00500GrayReel500 m8719605007339

History

Update and Revision: Revision Number: 0.171 Revision Date: 10-06-2020
Date: 2013-10-02
No accessories are available for this product
