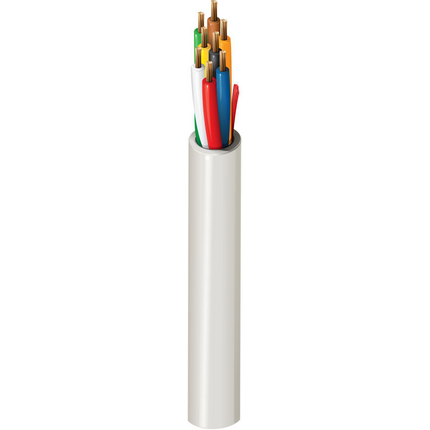

(109)Security & Commercial Audio Cable, 8-22 AWG stranded bare copper conductors with polypropylene insulation, LSZH jacket with ripcord, CPR Eca
| Suitable Applications: | Security/Intercom/PA/Sound/Audio Systems,Power Limited Controls, Single Line Telephone; Commercial applications |
| AWG | Stranding | Material | Nominal Diameter | No. of Conductors |
|---|---|---|---|---|
| 22 | 7x30 | BC - Bare Copper | 0.75 mm | 8 |
| Conductor Count: | 8 |
| Type | Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|---|
| Insulation | PE - Polyethylene | 1.07 mm | 0.05 mm | 0.2 mm |
| Number | Color |
|---|---|
| Wire 1 | Black |
| Wire 2 | Red |
| Wire 3 | White |
| Wire 4 | Green |
| Wire 5 | Brown |
| Wire 6 | Blue |
| Wire 7 | Orange |
| Wire 8 | Yellow |
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 4.65 mm | 0.4 mm | Yes |
| Table Notes: | Ripcord provided under sheath |
| Description |
|---|
| 8 wires twisted |
| Nominal Conductor DCR |
|---|
| 53 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
|---|
| 80 pF/m |
| Max. Recommended Current [A] |
|---|
| 2 A |
| Voltage Rating [V] |
|---|
| 300 V |
| Installation Temperature Range: | -20°C To +70°C |
| Storage Temperature Range: | -30°C To +70°C |
| Operating Temperature Range: | -20°C To +70°C |
| Max. Pull Tension: | 135 N |
| Min. Bend Radius During Installation: | 46.5 mm |
| Min Setting Radius: | 23.25 mm |
| CPR Euroclass: | Eca |
| Environmental Space: | Indoor - Euroclass Eca |
| IEC Flammability: | IEC 60332-1-2 |
| IEC 60754-1 - Halogen Amount: | Zero |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: | 2.5 µS/mm |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: | 4.3 |
| IEC 61034-2 - Smoke Density Min. Transmittance: | 60% |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 4506UE.00100 | Gray | Reel | 100 m | 8719605007261 |
| 4506UE.00500 | Gray | Reel | 500 m | 8719605007278 |
| Update and Revision: | Revision Number: 0.228 Revision Date: 12-19-2022 |
