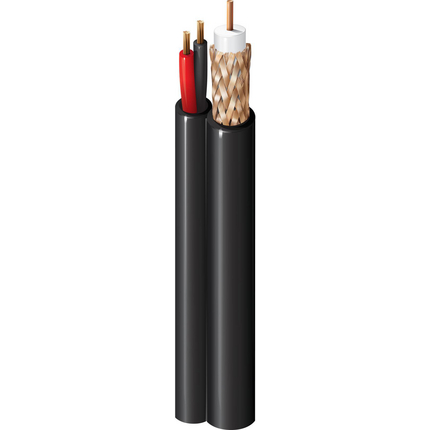

(4)PTZ (CCTV + Power/Audio) Cable), Coax 59/U, Flame retardance IEC60332-1 20 AWG solid bare copper, foamed polyethylene core, 95% bare copper braid, LSZH jacket
| Suitable Applications: | Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom) |
| Element | AWG | Stranding | Material | Nominal Diameter | No. of Pairs | No. of Coax |
|---|---|---|---|---|---|---|
| Coax(es) | 20 | Solid | BC - Bare Copper | 0.81 mm | 1 | |
| Pair1 | 18 | 7x26 | BC - Bare Copper | 1.17 mm | 1 |
| Conductor Count: | 3 |
| Element | Type | Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness | Color |
|---|---|---|---|---|---|---|
| Coax(es) | Dielectric | PE - Polyethylene (Foam) | 3.68 mm | |||
| Twisted Pair(s) | Insulation | PE - Polyethylene | 1.7 mm | 0.05 mm | 0.25 mm | Black & Red |
| Element | Type | Material | Coverage [%] |
|---|---|---|---|
| Coax(es) | Braid | Bare Copper (BC) | 95% |
| Element | Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| Coax(es) | LSZH - Low Smoke Zero Halogen (Flame Retardant) | 5.9 mm | 0.38 mm |
| OuterJacket1, Form: | Shotgun |
| OuterJacket1, Nominal Width: | 11.7 mm |
| Element | Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|---|
| Coax(es) | 10.3 Ohm/1000ft | 12.5 Ohm/km |
| Twisted Pair(s) | 21.3 Ohm/km |
| Element | Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|---|
| Coax(es) | 55.6 pF/m | |
| Twisted Pair(s) | 98.4 pF/m |
| Element | Nominal Characteristic Impedance |
|---|---|
| Coax(es) | 75 Ohm |
| Element | Frequency [MHz] | Nom. Insertion Loss |
|---|---|---|
| Coax(es) | 1 MHz | 0.98 dB/100m |
| 5 MHz | 2.13 dB/100m | |
| 10 MHz | 2.95 dB/100m | |
| 50 MHz | 6.23 dB/100m | |
| 100 MHz | 8.53 dB/100m | |
| 200 MHz | 11.8 dB/100m | |
| 400 MHz | 16.4 dB/100m | |
| 700 MHz | 23 dB/100m | |
| 900 MHz | 26.2 dB/100m | |
| 1000 MHz | 27.9 dB/100m |
| Element | Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| Coax(es) | 410 ns/ft | 83% |
| Element | Voltage Rating [V] |
|---|---|
| Coax(es) | 300 V RMS |
| Twisted Pair(s) | 300 V RMS |
| Storage Temperature Range: | -30°C To +70°C |
| Operating Temperature Range: | -30°C To +70°C |
| Max. Pull Tension: | 450 N |
| Min Bend Radius (W/o Pulling Strength): | 29.5 mm |
| Min Setting Radius: | 59 mm |
| CPR Euroclass: | Dca-s2,d2,a1 |
| RG Type: | 59 |
| Environmental Space: | Indoor/Outdoor - Euroclass Dca |
| IEC Flammability: | IEC 60332-1-2 |
| IEC 60754-1 - Halogen Amount: | Zero |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: | 2.5 µS/mm |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: | 4.3 |
| IEC 61034-2 - Smoke Density Min. Transmittance: | 60% |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 449945.00100 | Gray | Reel | 100 m | 8719605007018 |
| 449945.00500 | Gray | Reel | 500 m | 8719605007025 |
| Update and Revision: | Revision Number: 0.269 Revision Date: 02-03-2025 |
