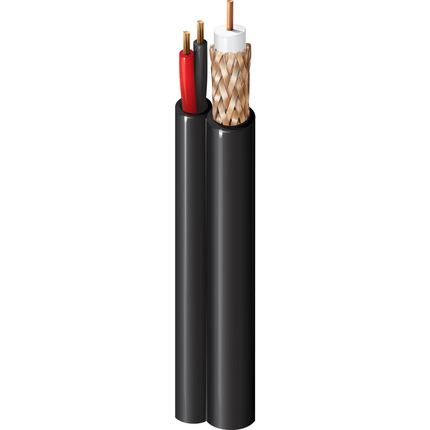

(4)PTZ (CCTV + Power/Audio) Cable), Coax RG-6, 18 AWG solid bare copper, foamed polyethylene core, 95% bare copper braid, LSZH jacket
| Suitable Applications: | Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom) |
| Element | AWG | Stranding | Material | Nominal Diameter | No. of Pairs | No. of Coax |
|---|---|---|---|---|---|---|
| Coax(es) | 18 | Solid | BC - Bare Copper | 1.02 mm | 1 | |
| Pair1 | 18 | 7x26 | BC - Bare Copper | 1.17 mm | 1 |
| Conductor Count: | 3 |
| Element | Type | Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness | Color |
|---|---|---|---|---|---|---|
| Coax(es) | Dielectric | PE - Polyethylene (Foam) | 4.57 mm | |||
| Twisted Pair(s) | Insulation | PE - Polyethylene | 1.7 mm | 0.05 mm | 0.25 mm | Black & Red |
| Element | Type | Material | Coverage [%] |
|---|---|---|---|
| Coax(es) | Braid | Bare Copper (BC) | 95% |
| Element | Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| Coax(es) | LSZH - Low Smoke Zero Halogen (Flame Retardant) | 6.8 mm | 0.38 mm |
| OuterJacket1, Form: | Shotgun |
| OuterJacket1, Nominal Width: | 12.7 mm |
| Element | Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|---|
| Coax(es) | 6.52 Ohm/1000ft | 10.2 Ohm/km |
| Twisted Pair(s) | 21 Ohm/km |
| Element | Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|---|
| Coax(es) | 53.4 pF/m | |
| Twisted Pair(s) | 78.7 pF/m |
| Element | Nominal Characteristic Impedance |
|---|---|
| Coax(es) | 75 Ohm |
| Element | Frequency [MHz] | Nom. Insertion Loss |
|---|---|---|
| Coax(es) | 1 MHz | 0.56 dB/100m |
| 5 MHz | 1.48 dB/100m | |
| 10 MHz | 2.1 dB/100m | |
| 50 MHz | 4.79 dB/100m | |
| 100 MHz | 6.89 dB/100m | |
| 200 MHz | 9.84 dB/100m | |
| 400 MHz | 14.1 dB/100m | |
| 700 MHz | 19 dB/100m | |
| 900 MHz | 22 dB/100m | |
| 1000 MHz | 23.3 dB/100m |
| Element | Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| Coax(es) | 400 ns/ft | 83% |
| Element | Voltage Rating [V] |
|---|---|
| Coax(es) | 300 V RMS |
| Twisted Pair(s) | 300 V RMS |
| Storage Temperature Range: | -30°C To +70°C |
| Operating Temperature Range: | -30°C To +70°C |
| Max. Pull Tension: | 52 N |
| Min Bend Radius (W/o Pulling Strength): | 34 mm |
| Min Setting Radius: | 68 mm |
| CPR Euroclass: | Eca |
| RG Type: | 6 |
| Environmental Space: | Indoor/Outdoor - Euroclass Eca |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 439945.00100 | Gray | Reel | 100 m | 8719605006899 |
| 439945.00500 | Gray | Reel | 500 m | 8719605006905 |
| Update and Revision: | Revision Number: 0.255 Revision Date: 02-03-2025 |
