4304FLW - Security & Sound, #18-6c, BC, LSZH, Shielded, Cca

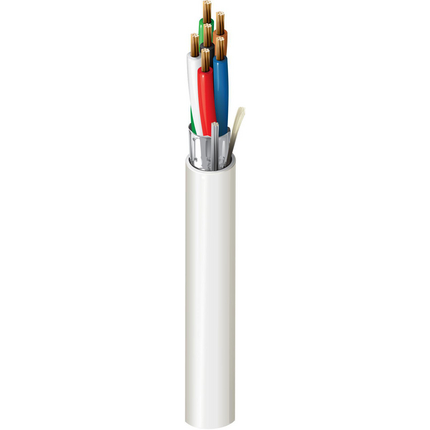

Security & Commercial Audio Cable, 6-18 AWG stranded bare copper conductors with Low Smoke Zero Halogen insulation, Beldfoil® shield and LSZH jacket with ripcord, CPR Cca

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Conductors
187x26BC - Bare Copper1.22 mm6
Conductor Count: 6
Insulation
TypeMaterialNominal DiameterNominal Wall Thickness
InsulationLSZH - Low Smoke Zero Halogen (Flame Retardant)1.72 mm0.35 mm
Color Chart
NumberColor
Wire 1Black
Wire 2Red
Wire 3White
Wire 4Green
Wire 5Brown
Wire 6Blue
Outer Shield
TypeMaterialMaterial Trade NameCoverage [%]Thickness of FoilDrainwire MaterialDrainwire AWG
TapeBi-Laminate (Alum+Poly)Beldfoil®100%9 µmTC - Tinned CopperAWG24/7
Outer Jacket
MaterialNominal DiameterNominal Wall ThicknessRipcord
LSZH - Low Smoke Zero Halogen (Flame Retardant)7.4 mm1.0 mmProvided under sheath

Construction and Dimensions

Cabling
Description
6 wires twisted

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
21.3 Ohm/km23.6 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
125 pF/m224 pF/m
Current
Max. Recommended Current [A]
3.5 Amps per Conductor
Voltage
Voltage Rating [V]
300 V

Temperature Range

Installation Temperature Range: -20°C To +70°C
Storage Temperature Range: -30°C To +70°C
Operating Temperature Range: -20°C To +70°C

Mechanical Characteristics

Max. Pull Tension: 280 N
Min. Bend Radius During Installation: 74 mm
Min Setting Radius: 38 mm

Standards

CPR Euroclass: Cca-s1a,d1,a1

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Cca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 - Halogen Amount: Zero
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: 4.3
IEC 61034-2 - Smoke Density Min. Transmittance: 80%

Related Part Numbers

Variants
Item #ColorPut-Up TypeLengthEAN
4304FLW.00500GrayReel500 m8719605179654

History

Update and Revision: Revision Number: 0.45 Revision Date: 04-08-2022
