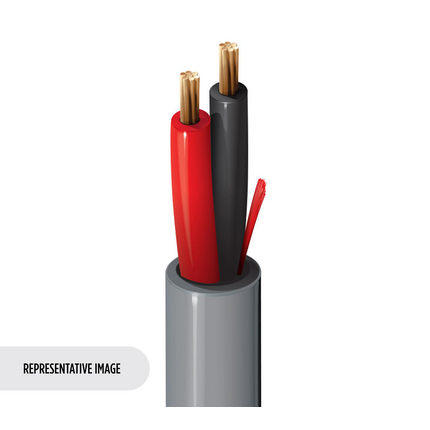

4300UE - Security & Sound, 2 Conductor 18 AWG BC, LSZH, Eca


Security & Commercial Audio Cable, 2-18 AWG stranded bare copper conductors with polypropylene insulation, LSZH jacket with ripcord, CPR Eca

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems, Control Systems

Construction Details

Conductor
SizeStrandingMaterial
187x26BC - Bare Copper
Insulation
MaterialNom. ThicknessNom. Insulation DiameterColor Code
PP - Polypropylene0.2 mm (0.0079 in)1.5 mm (0.059 in)Black, Red
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
LSZH - Low Smoke Zero Halogen (Flame Retardant)0.4 mm (0.016 in)4 mm (0.16 in)Provided under sheath
Overall Cable Diameter (Nominal): 4 mm (0.16 in)

Electrical Characteristics

Electricals
Nom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
21.3 Ohm/km (6.49 Ohm/1000ft)100 pF/m (30 pF/ft)5 A

Mechanical Characteristics

Temperature
OperatingInstallationStorage
-20°C To +70°C-20°C To +70°C-30°C To +70°C
Bend Radius
Installation Min.
40 mm (1.6 in)
Max. Pull Tension: 90 N (20 lbf)

Standards and Compliance

Environmental Suitability: Indoor - Euroclass Eca, Non-Halogenated
Flammability / Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
ISO/IEC Compliance: IEC 61034-2 - Smoke Density Min Transmittance = 60%
CENELEC Compliance: EN 50290-2-27
European Halogen Free Standards: IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3
European Directive Compliance: EU Directive 2011/65/EU (RoHS 2)

History

Update and Revision: Revision Number: 0.223 Revision Date: 05-06-2022

Part Numbers

Variants
Item #ColorPutup TypeLengthEAN
4300UE.00100Gray, RAL 7032Reel100 m8719605006516
4300UE.00500Gray, RAL 7032Reel500 m8719605006523
4300UE.01500WhiteReel500 m8719605144065
4300UE.011000WhiteReel1,000 m8719605006530
Date: 1998-01-01
No accessories are available for this product
