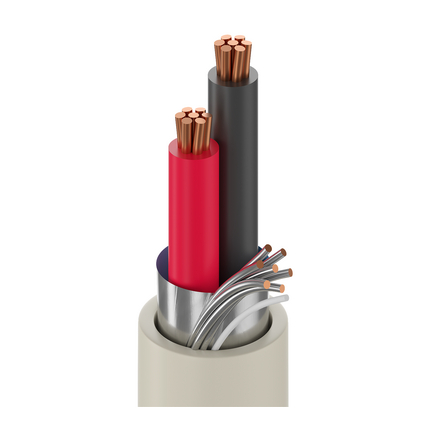

4300FE - AUDIO 2x18AWG BELDFOIL, FRNC/LSZH


AUDIO 2x18AWG BELDFOIL, FRNC/LSZH

Product Overview

Environmental Space: Indoor - Euroclass Eca
Suitable Applications: Commercial applications

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Conductors
187x26BC - Bare Copper1.22 mm2
Conductor Count: 2
Insulation
TypeMaterialNominal DiameterDiameter +/- ToleranceNominal Wall Thickness
InsulationPP - Polypropylene1.5 mm0.05 mm0.2 mm
Color Chart
NumberColor
Wire 1Black
Wire 2Red
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Thickness of FoilDrainwire MaterialDrainwire AWG
TapeAluminum/PolyesterBeldfoil®100 %9 µmTC - Tinned CopperAWG24/7
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
LSZH / FRNC4.15 mm0.4 mmProvided under the sheath

Construction and Dimensions

Cabling
Description
2 wires twisted

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
21.3 Ohm/km23.6 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
158 pF/m295 pF/m
Current
Max. Recommended Current [A]
3.5 A
Voltage
Voltage Rating [V]
300 V

Temperature Range

Installation Temp Range: -20°C To +70°C
Storage Temp Range: -30°C To +70°C
Operating Temp Range: -20°C To +70°C

Mechanical Characteristics

Max Recommended Pulling Tension: 90 N
Min Bend Radius During Installation: 41.5 mm
Min Setting Radius: 20.75 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2
Amount of Halogen acc. to IEC 60754-1 & EN50267-1: Zero

Part Number

Variants
Item #ColorLength
4300FE.00100Gray100 m
4300FE.00500Gray500 m
4300FE.K0500Gray500 m

History

Update and Revision: Revision Number: 0.167 Revision Date: 09-02-2019
Date: 2005-01-01
