4200UE - Security & Sound, 2 Conductor 16 AWG BC, LSZH, Eca

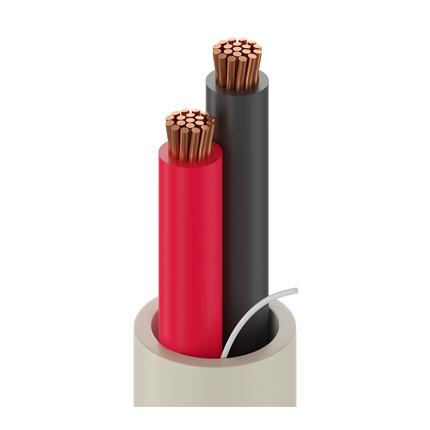

Security & Commercial Audio Cable, 2-16 AWG stranded bare copper conductors with polypropylene insulation, LSZH jacket with ripcord, CPR Eca

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Conductors
1619x29BC - Bare Copper1.5 mm2
Conductor Count: 2
Insulation
TypeMaterialNominal DiameterDiameter +/- ToleranceNominal Wall Thickness
InsulationPP - Polypropylene1.8 mm0.05 mm0.2 mm
Color Chart
NumberColor
Wire 1Black
Wire 2Red
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
LSZH - Low Smoke Zero Halogen (Flame Retardant)4.6 mm0.4 mmProvided under the sheath

Construction and Dimensions

Cabling
Description
2 wires twisted

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
13.8 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
105 pF/m
Current
Max. Recommended Current [A]
6.25 Amps per Conductor
Voltage
Voltage Rating [V]
300 V

Temperature Range

Installation Temp Range: -20°C To +70°C
Storage Temp Range: -30°C To +70°C
Operating Temp Range: -20°C To +70°C

Mechanical Characteristics

Max. Pull Tension: 150 N
Min Bend Radius During Installation: 46 mm
Min Setting Radius: 23 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca
EU RoHS Compliance Date (yyyy-mm-dd): 1998-01-01

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: 4.3
IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke Density Min. Transmittance: IEC 61034-2

Part Number

Variants
Item #ColorPutup TypeLengthEAN
4200UE.00100GrayReel100 m8719605006332
4200UE.00500GrayReel500 m8719605006356
4200UE.001000GrayReel1,000 m8719605006349
4200UE.01500WhiteReel500 m8719605144058
4200UE.011000WhiteReel1,000 m8719605006363

History

Update and Revision: Revision Number: 0.212 Revision Date: 10-06-2020
Date: 1998-01-01
