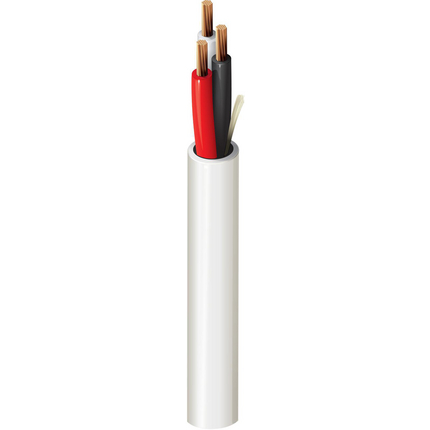

4101UE - Security & Sound, 3 Conductor 14 AWG BC, LSZH


Security & Commercial Audio Cable, 3-14 AWG stranded (19x27) bare copper conductors with polyolefin insulation, FRNC/LSZH jacket with ripcord.

Product Overview

Suitable Applications: Intercom/PA Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingConstruction n x DNo. of Conductors
14Stranded19xAWG273
Conductor Count: 3
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPP - Polypropylene2.34 mm0.05 mm
Color Chart
NumberColor
Wire 1Black
Wire 2Red
Wire 3White
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
LSZH - Low Smoke Zero Halogen (Flame Retardant)6.0 mm0.4 mmYes

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
8.3 Ohm/km

Temperature Range

Storage Temp Range: -30°C To +70°C
Operating Temp Range: -20 to +70°C

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2017-10-25

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: 4.3

Part Number

Variants
Item #ColorPutup TypeLength
4101UE.00500GrayReel500 m

History

Update and Revision: Revision Number: 0.67 Revision Date: 10-06-2020
Date: 2017-10-25
