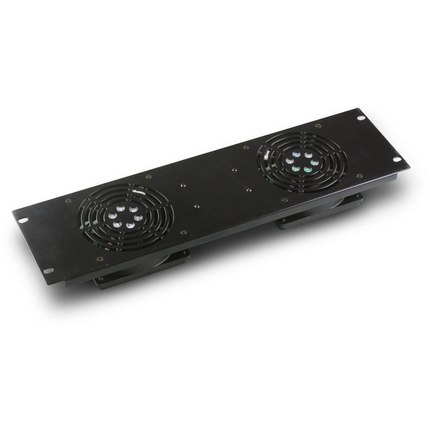

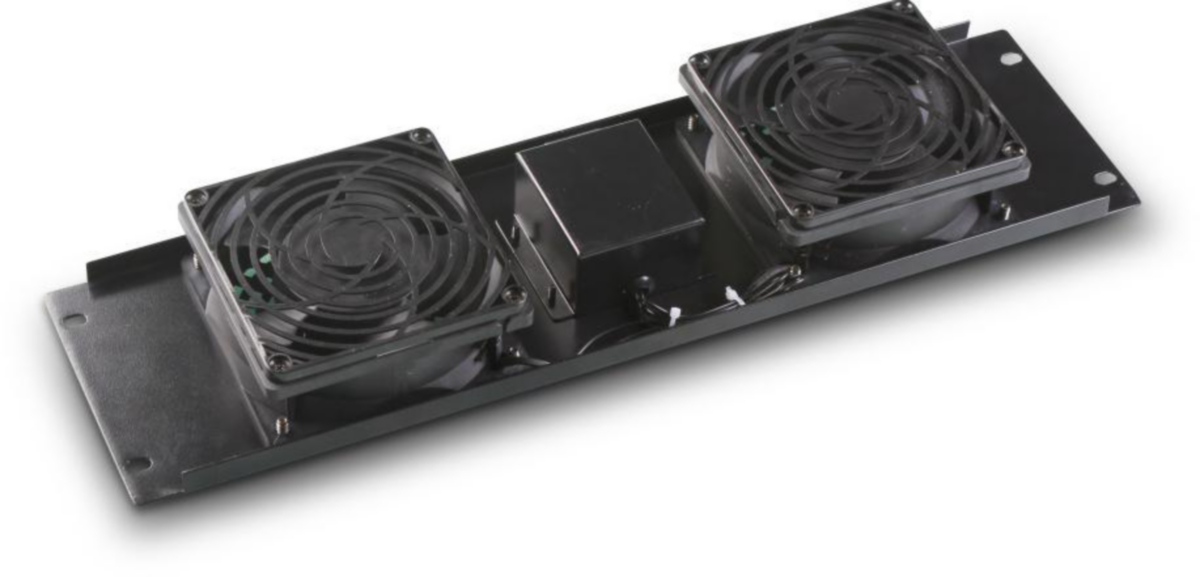

3U FAN UNIT A-SERIES - 3U Fan unit with power cord for 19" A-Serie cabinets

Fan unit especially made to fit Belden A-series, free standing cabinets. The unit can be installed horizontally inside the enclosure, fixed to the verticals. Units available with 2 or 4 fans and several plug types.

Application

Suitable Applications: Ventilating hot air from the front side of the cabinets to the rear side. Ideal in combination with perforated doors.
Environmental Space: Indoor

Construction and Dimensions

Rack Units: 3U

Mechanical Construction

Cord Length: 1.9 m

Environmental and Overall Characteristics

Material: SPCC cold rolled steel

Standards

EU CE Mark: Yes
EU Directive 2011/65/EU (ROHS II): Compliant

Part Number

Packaging: Individually packed in a box.
Variants
Item #Number of FansPlug TypeColor
ADAF3B212BS 1363PGray
ADAF3B222BS 1363PBlack
ADAF3B313BS 1363PGray
ADAF3B323BS 1363PBlack
ADAF3G21216A SchukoGray
ADAF3G22216A SchukoBlack
ADAF3G31316A SchukoGray
ADAF3N2125-15PGray
ADAF3N2225-15PBlack
ADAF3N3135-15PGray
ADAF3N3235-15PBlack
Update and Revision: Revision Number: 0.17 Revision Date: 04-16-2020
